    8 Inch 800x480 Sunlight Readable LCD Module Display 1000 cd/m2 RGB 24 Bit Interface

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z080TN64J
    Certification : ISO9001 / ISO14000/ROHS
    Price : 10~20usd/pc
    Payment Terms : T/T
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    8 Inch 800x480 Sunlight Readable LCD Module Display 1000 cd/m2 RGB 24 Bit Interface

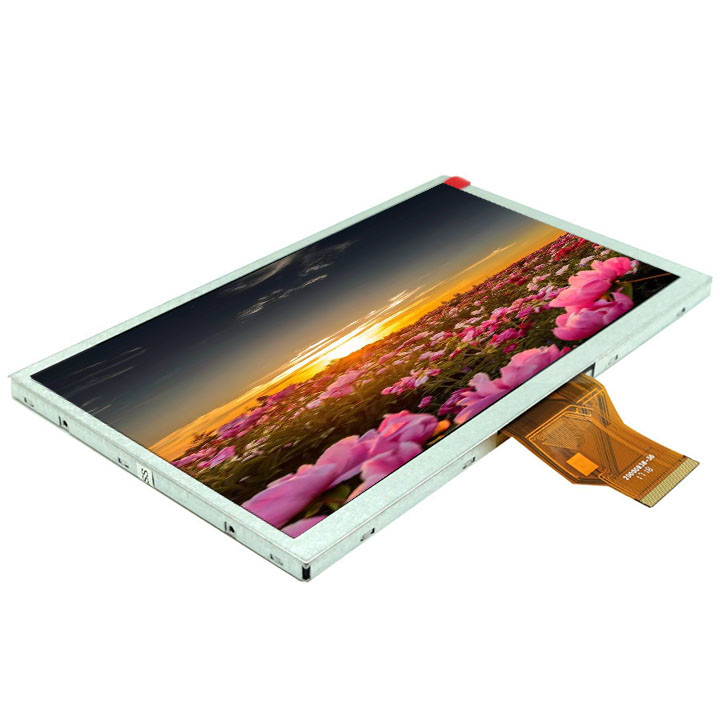

    8 inch Sunlight Readable Displays TFT Module 800x480 RGB 24 Bit Interface


    Product Description: Z080TN64J 8-inch TFT LCD Display Module

    Introducing the Z080TN64J, a high-performance 8-inch TFT LCD display module designed for exceptional clarity and versatility. With a resolution of 800x480 pixels and a 16:9 aspect ratio, this display delivers crisp and vibrant visuals for a wide range of applications.


    Key Features:

    Brightness & Contrast: Boasting a typical brightness of 350 nits and a contrast ratio of 500:1, the Z080TN64J ensures sharp image quality in various lighting conditions.


    Dimensions: The active display area measures 176.64 x 99.36 mm, while the module itself has an outline dimension of 192.80 x 116.90 mm, offering a compact yet powerful solution.


    Driver ICs & Interface: Equipped with EK9713 and EK73002 driver ICs, the module supports a 24-bit RGB interface, ensuring accurate color reproduction and smooth performance.


    Power Supply & Temperature Range: Operate seamlessly with a supply voltage range of 3.0V to 3.6V (typical 3.3V) and a wide temperature range of -20°C to +70°C, making it ideal for demanding environments.


    Applications: The Z080TN64J is perfect for industrial control systems, medical devices, and other applications requiring reliable and high-quality display performance. Its durable design and versatile features make it a top choice for developers and manufacturers alike.

    Upgrade your display needs with the Z080TN64J – where quality meets innovation.


    General Data

    Model Name8 inch TFT Display
    Resolution800X480
    Model Size (W*H*T)mm192.8*116.9*6.4mm
    Display Area (W*H)mm
    176.64 x 99.36mm
    Interface24 bit RGB
    Display ModeNormally White TN,Transmissive
    Viewing12:00 o'clock
    Brightness1000 cd/m2
    Pin number50
    Drive ICEK9713 + EK73002
    BACKLIGHT TYPE27 WHITE LED
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

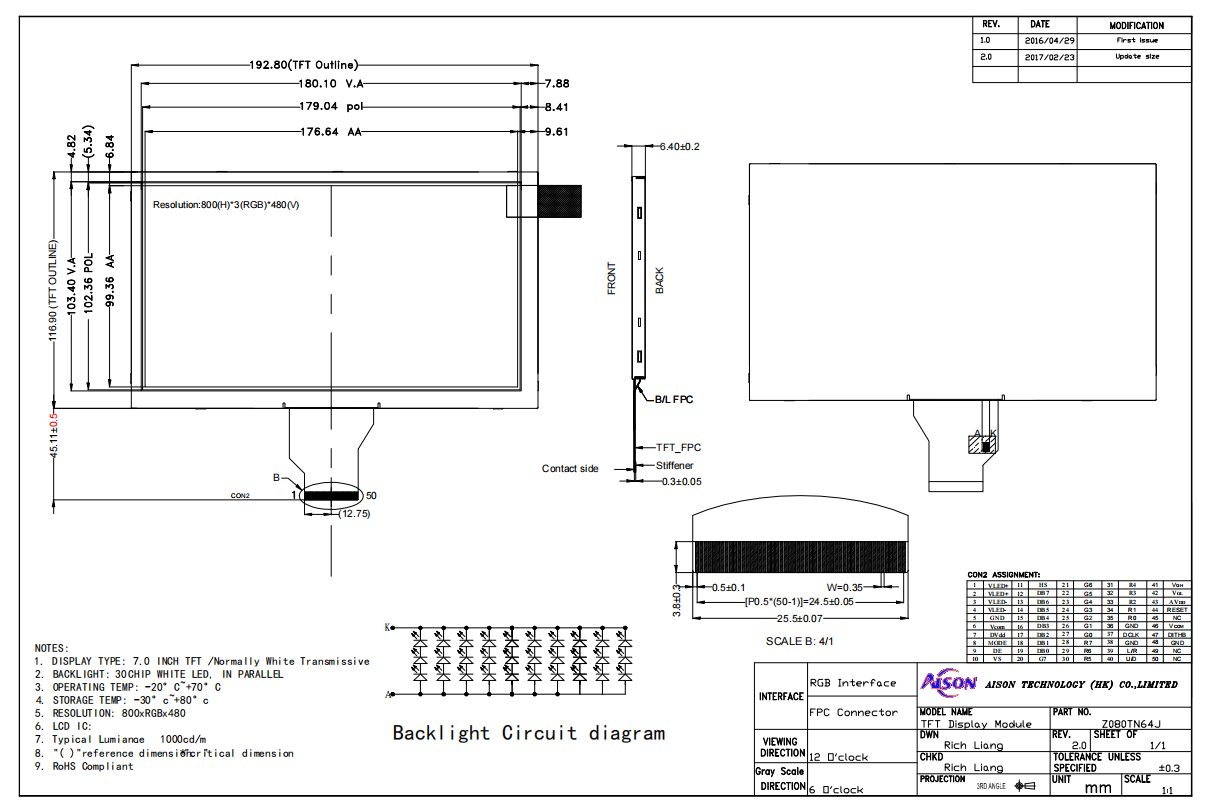

    Drawing


    Product Details

    8 Inch 800x480 Sunlight Readable LCD Module Display 1000 cd/m2 RGB 24 Bit Interface8 Inch 800x480 Sunlight Readable LCD Module Display 1000 cd/m2 RGB 24 Bit Interface

    TFT Applications

    This TFT LCD module is versatile and suitable for a wide range of applications:
    Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
