    2.8 Inch 240x320 IPS TFT LCD Display Module with SPI/ MCU/RGB Interface

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z028Q20
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

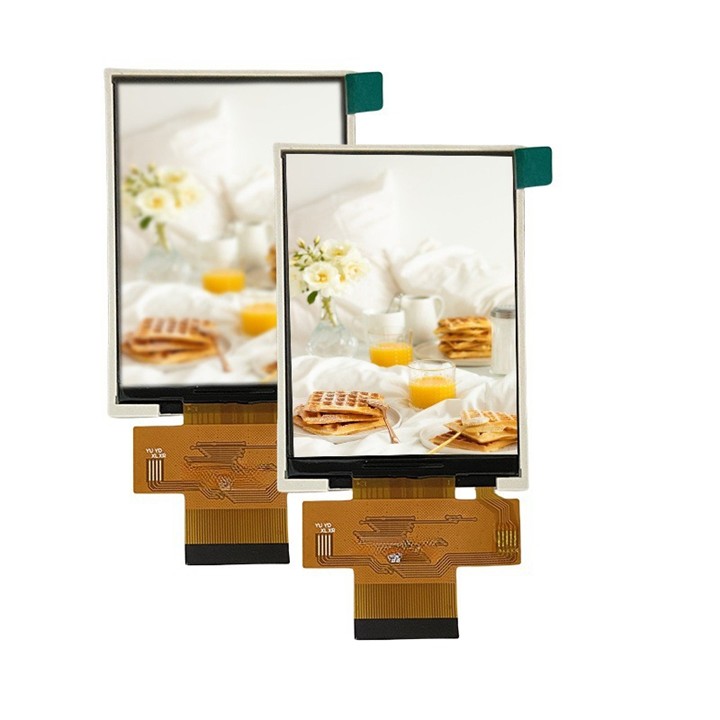

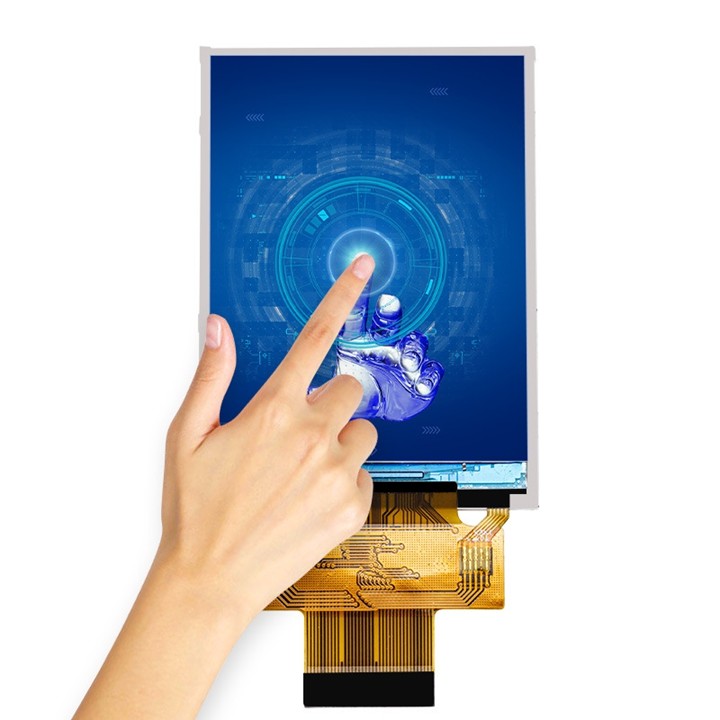

    2.8 Inch 240x320 IPS TFT LCD Display Module with SPI/ MCU/RGB Interface

    2.8 Inch 240x320 IPS LCD Module Display with SPI/ MCU/RGB Interface


    Display General Description

    Z028Q20 is a 2.8-inch IPS TFT-LCD display module with a high-resolution of 240 x 320 pixels. Equipped with the ST7789V controller, this module supports both MCU8080 and SPI interfaces, offering versatile connectivity options. The IPS panel enhances viewing experience with a wide

    viewing angle of 80 degrees (typical) in all directions (left, right, up, down), a contrast ratio of 500:1 (typical), and a brightness of 350 nits (typical).


    Featuring a portrait-oriented design, the 2.8 inch color tft display Z028Q20 integrates the ST7789V controller directly on the module. It operates on an analog supply voltage (VCI) ranging from 2.5V to 3.3V. Designed for reliability, this TFT-LCD module functions effectively within an operating temperature range of -20°C to +70°C, with storage capabilities from -30°C to +80°C.


    This compact, high-performance 2.8 inch module display is ideal for a variety of applications, including industrial devices, consumer electronics, and medical equipment.


    General Data

    Model Name2.8 inch IPS LCD Module
    Resolution240x320
    Model Size (W*H*T)
    47.6*64.86*2.1mm
    Display Area (W*H)
    43.2*57.6 mm
    InterfaceSPI/MCU/RGB
    Display ModeNormally Black,Transmissive
    Viewing Angles80/80/80/80
    Brightness350 cd/m2
    Pin number45
    Drive ICST7789V
    BACKLIGHT TYPE4 WHITE LED
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

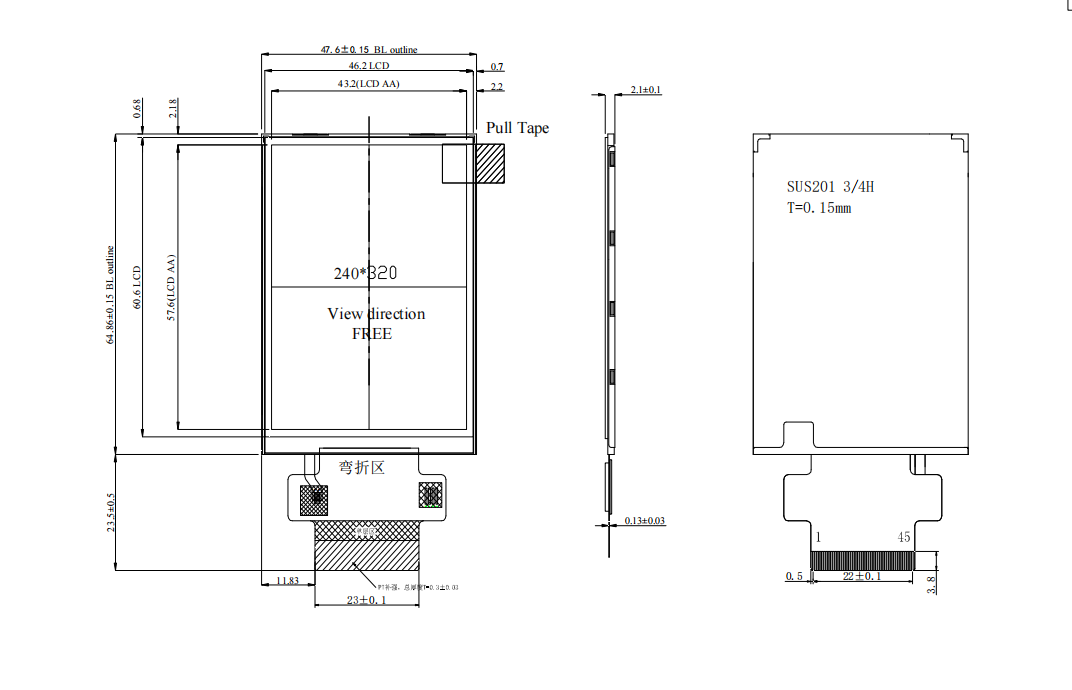

    Drawing

    Product Details


    2.8 Inch 240x320 IPS TFT LCD Display Module with SPI/ MCU/RGB Interface2.8 Inch 240x320 IPS TFT LCD Display Module with SPI/ MCU/RGB Interface2.8 Inch 240x320 IPS TFT LCD Display Module with SPI/ MCU/RGB Interface


    TFT Applications

    The versatility of this 2.8 inch IPS TFT-LCD displays makes them suitable for various applications, including consumer electronics, medical displays, and industrial control panels.
