5.7 inch TFT LCD Display Module 320x240 TN RGB Interface 750cd/m2

Display General Description

Z057Q01 is a 5.7-inch diagonal 320x240 standard TFT LCD display module. The view direction is 12 o'clock, grayscale inversion is at 6 o'clock, and the aspect ratio is 4:3.

Measuring 144×104.6 mm, with an active area of 115.2×86.40 mm,the TFT display module integrates HX8218 and HX8615 driver ICs, supporting a 18-bit RGB Interface. Its 5.7-inch TFT LCD panel boasts a brightness of 750 cd/m2 and a contrast ratio (typical value) of 300:1. Thanks to its anti-glare display surface, reflections are minimized, ensuring superior image quality.

Operating within a temperature range of -20 to +70℃, and with a storage temperature spanning from -30 to +80℃, this module is built to withstand diverse environmental conditions.

General Data

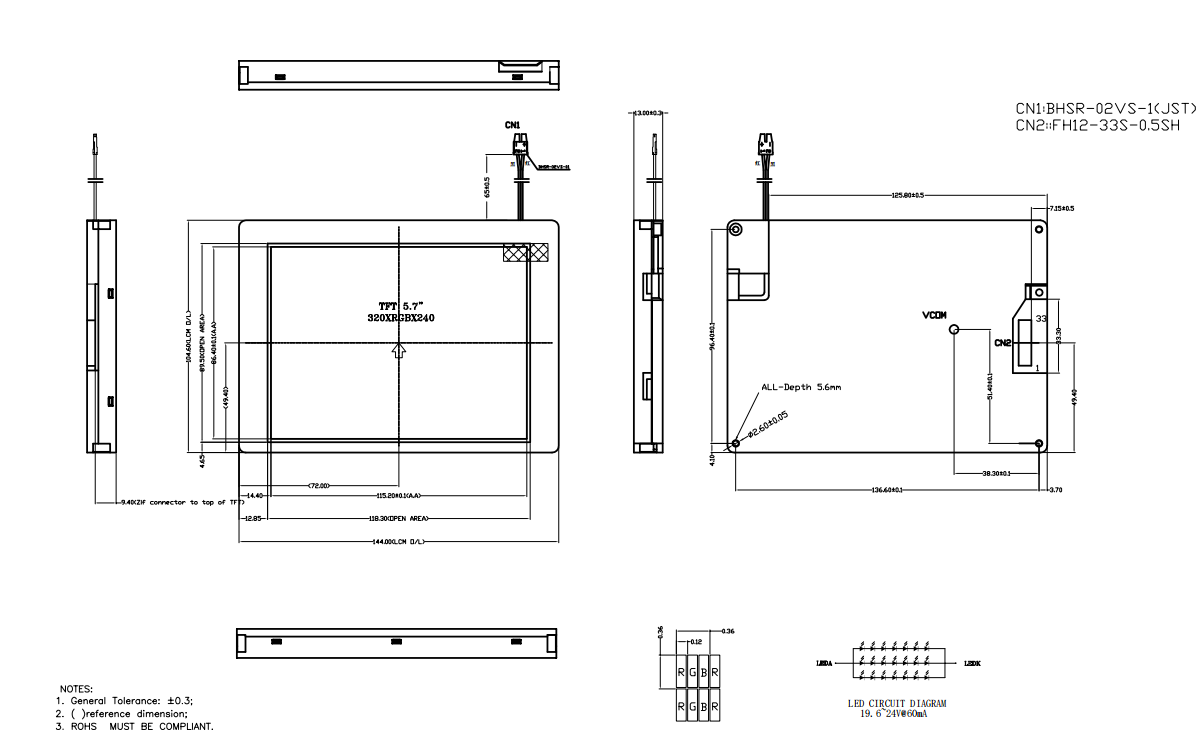

Drawing

Product Details

TFT Applications

This TFT LCD module is versatile and suitable for a wide range of applications:
Mixing Consoles
Medical Monitoring Equipment
Industrial Equipment Control Panels
