    ESP32 Bluetooth Display Module 4.3 Inch Smart Touch Displaylay Screen 480x272

    Ask Lasest Price
    Brand Name : AISON
    Model Number : ESP32-3248S035
    Price : Negotiable based on quantity
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 200K/M
    • Product Details
    • Company Profile

    ESP32 Bluetooth Display Module 4.3 Inch Smart Touch Displaylay Screen 480x272

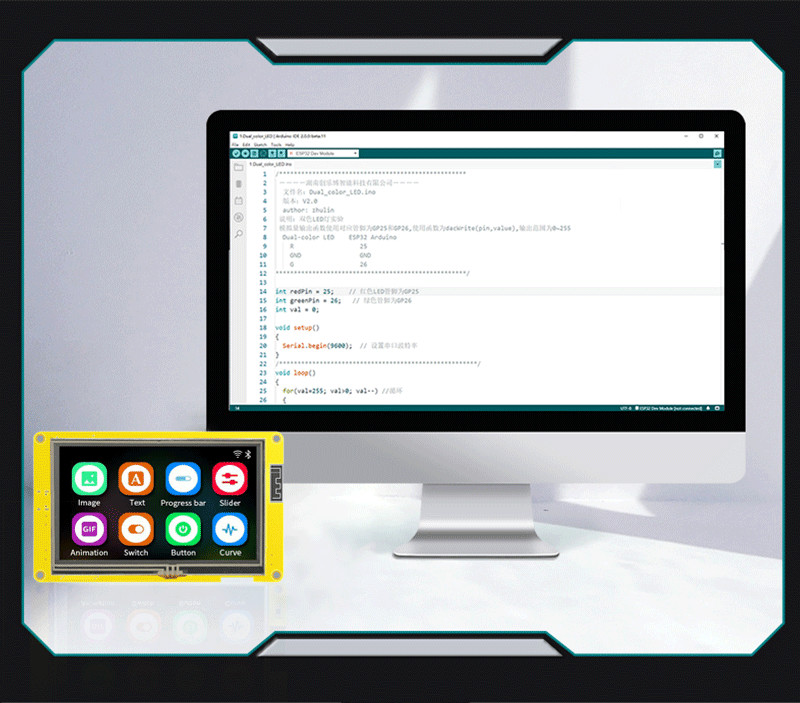

    4.3 inch LCD TFT Module With Touch ESP32 480*272 WIFI Blue tooth Development Board 800*480 4.3" Smart Touch Display Screen


    Parameter:
    Use low-power dual-core 32-bit CPU, which can be used as an application processor.
    The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
    Built-in 520 KB SRAM
    Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
    Support OV2640 and OV7670 cameras, built-in flash
    Support picture WiFI upload
    Support TF card
    Support multiple sleep modes.
    Embedded Lwip and FreeRTOS
    Support STA/AP/STA+AP working mode
    Support Smart Config/AirKiss one-click network configuration
    Support secondary development

    Specifications
    Working voltage 4.75-5.25V
    SPIFlash default 32Mbit
    RAM internal 520KB
    Wi-Fi 802.11b/g/n/e/i
    Bluetooth Bluetooth 4.2BR/EDR and BLE standard
    Support interface (2Mbps) UART, SPI, I2C, PWM
    Support TF card, maximum support 4G
    IO port 9
    Serial port rate default 115200bps
    Spectrum range 2400 ~2483.5MHz
    Antenna form Onboard PCB antenna, gain 2dBi
    Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
    Packaging method DIP-16
    Transmit power 802.11b: 17±2dBm (@11Mbps)
    802.11g: 14±2dBm (@54Mbps)
    802.11n: 13±2dBm (@MCS7)
    Receiving sensitivity CCK, 1Mbps: -90dBm
    CCK, 11Mbps: -85dBm
    6Mbps(1/2BPSK): -88dBm
    54Mbps (3/464-QAM): -70dBm
    MCS7 (65Mbps, 72.2Mbps): -67dBm
    Power consumption Turn off the flash: 180mA@5V
    Turn on the flash and adjust the brightness to the maximum: 310mA@5V
    Deep-sleep: The lowest power consumption can reach 6mA@5V
    Moderm-sleep: the lowest can reach 20mA@5V
    Light-sleep: the lowest can reach 6.7mA@5V
    Security WPA/WPA2/WPA2-Enterprise/WPS
    Working temperature -20 ℃~ 70 ℃
    Storage environment -40 ℃~ 125 ℃, <90%RH

    Application
    Home smart device image transmission
    Wireless monitoring
    Smart agriculture
    QR wireless recognition
    Wireless positioning system signal
    And other IoT applications
