    7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display

    Ask Lasest Price
    Brand Name : AISON
    Model Number : RTD2660-V1.0N
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable based on quantity
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 200k/month
    Delivery Time : 7 working days for samples;3-4 weeks for mass production
    • Product Details
    • Company Profile

    7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display

    7 inch 1024x600 TFT LCD Raspberry Pi Capacitive Touch Screen Display Module IPS Raspberry Pi 4 3 Display


    General Description

    RTD2660-V1.0N is a 7.0inch LCD display driver board; supports HDMI input;supports I2S digital audio signal input and speaker output; Support 4-wire resistive touch panel or 6-wire capacitive touch panel.( This function can onlybe selected from two )


    Features

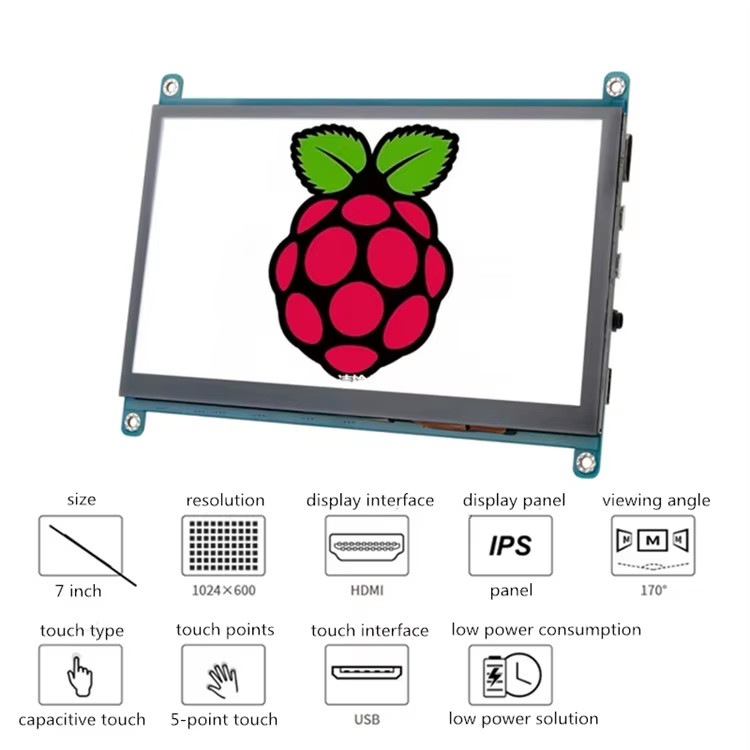

    1.7-inch IPS panel display, 1024×600 ultra-clear resolution. Capacitive touch screen, supports 5-point touch

    2.Supports independent backlight control and can turn off the backlight to save power consumption
    3.Supports standard HDMI/Mini VGA interface input, compatible and can be directly plugged in (3rd generation, 2nd generation and 1st generation)

    4.Can be used as a general HDMI display, such as connecting to a computer HDMI as a secondary display (the resolution output must be adjustable to 1024X600)

    5.Used as a monitor, supports Raspbian, Ubuntu, Kodi, win10 IOT, single-touch, driver-free

    6.Used as a computer monitor, supports 5-point touch for win7, win8, win10 and win11 systems (single-touch for XP and older systems), driver-free



    General Spec

    Model Name7 inch Raspberry Pi Touch Display
    Resolution1024X600
    Model Size (W*H*T)mm164.9*122.96*13.2
    Display Area (W*H)mm154.08x85.92
    InterfaceHDMI &USB
    Display ModeNormally Black,Transmissive
    ViewingAll/IPS
    Brightness450 cd/m2
    Pin50
    TouchCaptouch
    ApplicationFor Raspberry Pi
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

    Drawing


    Product Details

    7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display

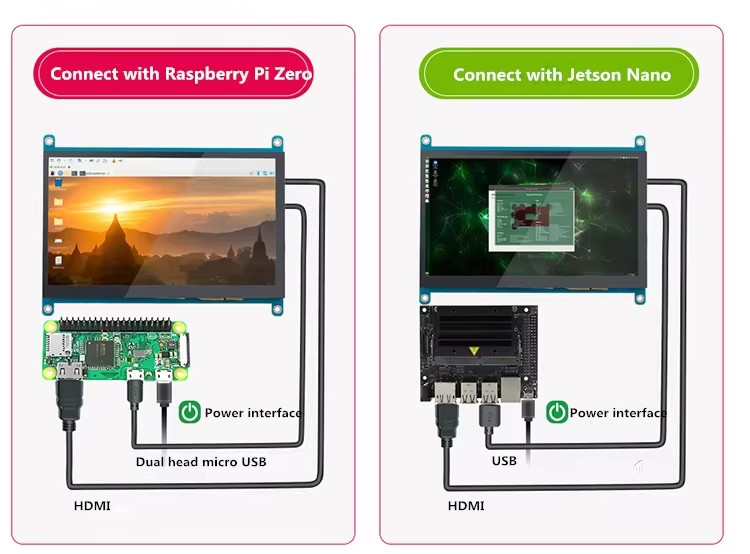

    TFT Applications


    This 7 inch Raspberry Pi Touch Display 1024x600 IPS HDMI TFT Display application:

    1,.Used as a monitor, supports Raspbian, Ubuntu, Kodi, win10 IOT, single-touch, driver-free

    2.Used as a computer monitor, supports 5-point touch for win7, win8, win10 and win11 systems (single-touch for XP and older systems), driver-free


    7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display7 '' 1024x600 HDMI TFT Display 450 Cd/M2 Raspberry Pi 7 Touchscreen Display
