    7 Inch 800x480 IPS TFT Capacitive Touch Display RGB 40pin

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z070WV45-CT
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable based on quantity
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

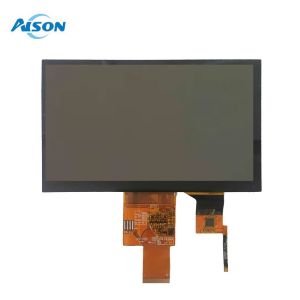

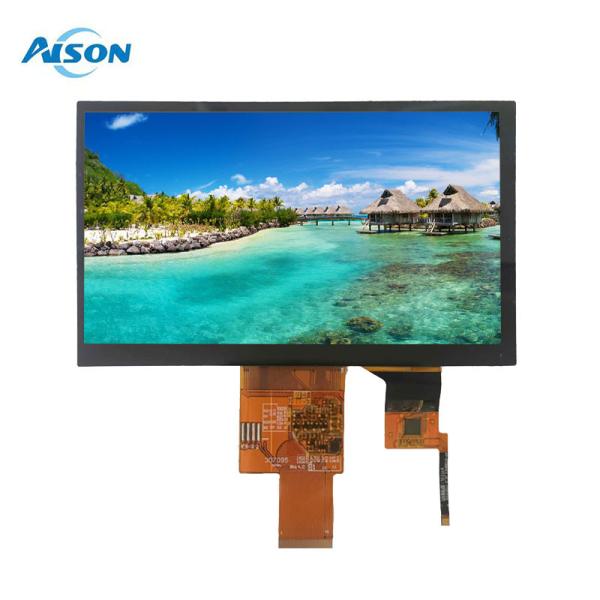

    7 Inch 800x480 IPS TFT Capacitive Touch Display RGB 40pin

    7 Inch 800x480 IPS TFT LCD Display with Capacitive Touch Panel RGB 40Pin


    General Description

    Z070WV45-CT is a 7-inch IPS TFT LCD module with a Projected Capacitive Touch Panel, featuring a resolution of 800x480pixels. The module has dimensions of 164.9*100 mm and an active area size of 153.84 x 85.63mm, with an aspect ratio of 16:9. This 7 inch display utilizes IPS technology to deliver a wider viewing angle of 85 degrees in all directions (Left: 85 / Right: 85 / Up: 85 / Down: 85).


    Integrated with EK79713CA+EK73202AB2 driver ICs, supporting RGB 24 bit interface, it boasts a contrast ratio of 1000:1 (typical value) and a brightness of 350 nits (typical value). The display surface is made of glare surface glass, adopting a normally black, transmissive LCD type. The Projected Capacitive Touch Panel of Z070WV45-CT incorporates the GT911 IC, supporting I2C interfaces and 5-points touch function.


    This 7 inch IPS LCD module is designed to withstand various environmental conditions. Its operating temperature ranges from -20°C to +70°C, while the storage temperature extends from -30°C to +80°C, making it suitable for a wide range of applications.


    General Data

    Model Name7 inch TFT Display with touch screen
    Resolution800*(RGB)*480
    Model Size (W*H*T)mm164.9*100*7.25mm
    Display Area (W*H)mm153.84 x 85.63mm
    Interface24 Bit RGB
    Display TypeNormally Black,Transmissive
    Viewing Angles85/85/85/85
    Brightness350 cd/m2
    Pin number40
    Contrast Ratio
    1000:1
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

    Drawing



    Product Details

    7 Inch 800x480 IPS TFT Capacitive Touch Display RGB 40pin7 Inch 800x480 IPS TFT Capacitive Touch Display RGB 40pin


    TFT Applications


    These tft displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
