    4.3 Inch 800x480 IPS TFT LCD Display 450 Cd/M2 RGB Interface

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z043WV08H
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

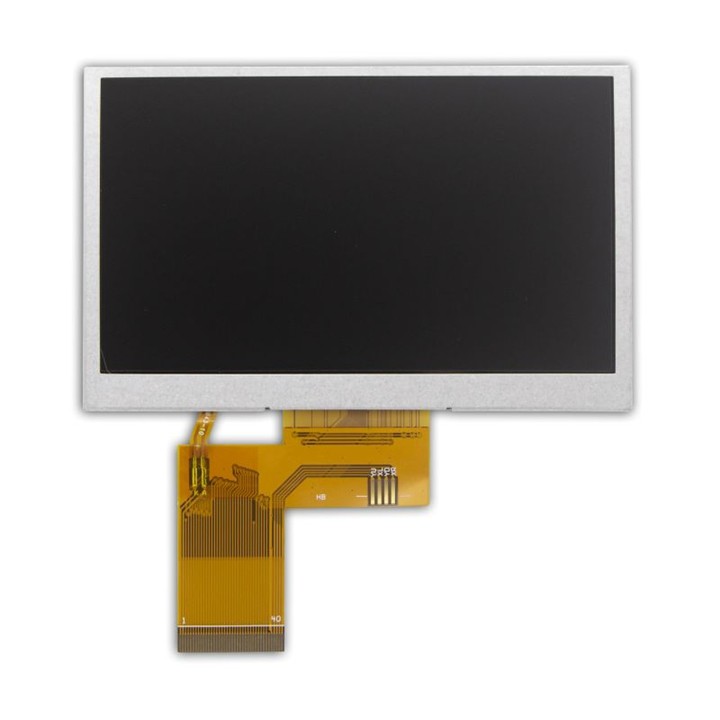

    4.3 Inch 800x480 IPS TFT LCD Display 450 Cd/M2 RGB Interface

    4.3 inch IPS TFT LCD Module 800x480 Resolution RGB Interface


    General Description

    Z043WV08H is a 4.3 inch wider view angle IPS TFT LCD module, with high resolution 800x480 pixels and 450 nits brightness (typical value). This TFT model is built in with SC7283 driver IC, supporting 24-bit RGB interfaces. We also offer Resistive Touch Panels (RTP) and Projected Capacitive Touch Panel (PCAP) options for this 4.3 ich lcd module.


    This 4.3” IPS TFT has a viewing angle wider than TN TFT, its viewing angles are Left:80 / Right:80 / Up:80 / Down:80 degrees (typical value). The supply voltage for LCM (VCC) of Z043WV08H is from 3.0V to 3.6V. The module has a glare-surface glass, 16:9 aspect ratio, 800:1 contrast ratio (typical value). It can operate at wide temperatures from -30℃ to +80℃ and its storage temperatures are from -30℃ to +85℃.


    General Data

    Model Name4.3 inch IPS TFT Module
    Resolution800x480
    Model Size (W*H*T)105.45*67.2*3 mm
    Display Area (W*H)95.04 x 53.856 mm
    Interface24 Bit RGB
    Display ModeNormally Black,Transmissive
    ViewingIPS
    Brightness450 cd/m2
    Pin number40 pin
    Driver ICSC7283
    Operating temperatures-30 to 80
    Storage temperatures-30 to 85

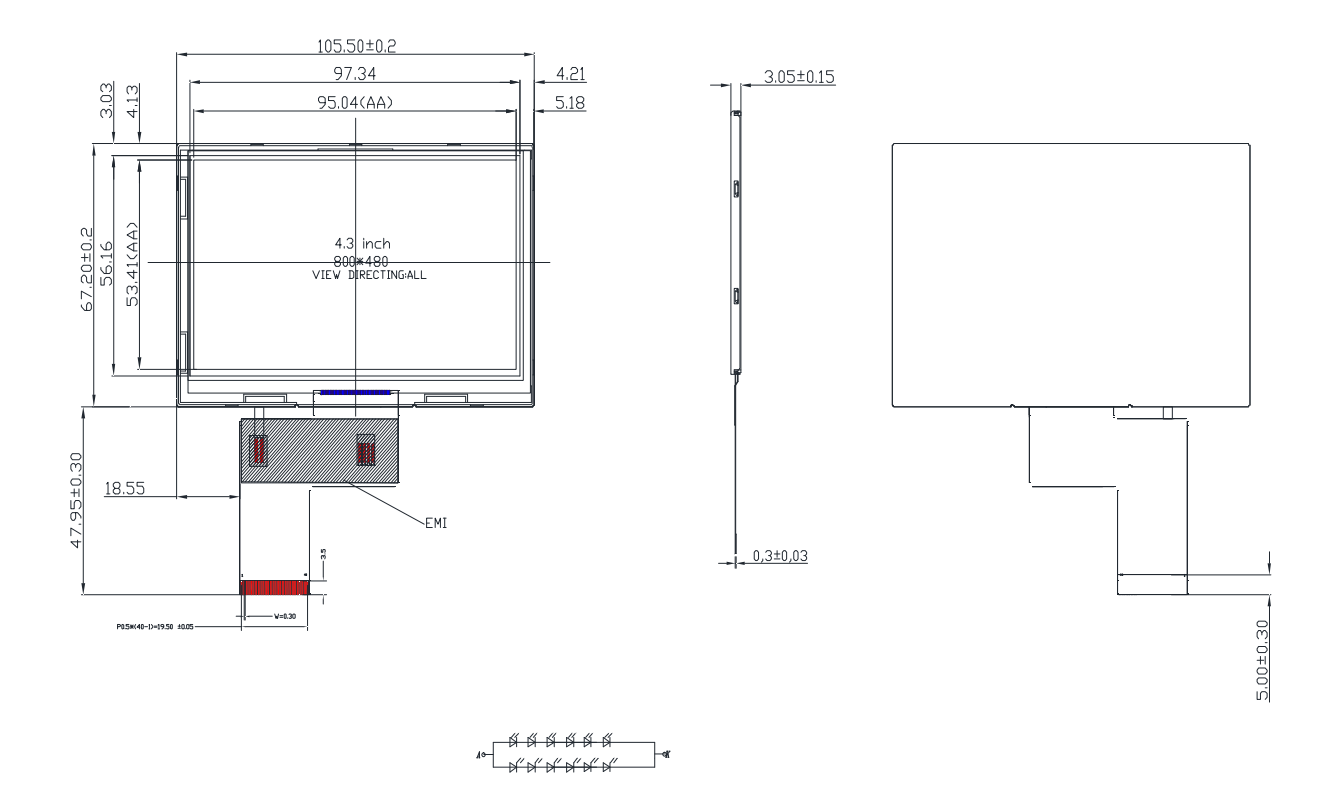

    Drawing


    Product Details


    4.3 Inch 800x480 IPS TFT LCD Display 450 Cd/M2 RGB Interface4.3 Inch 800x480 IPS TFT LCD Display 450 Cd/M2 RGB Interface


    TFT Applications


    This 4.3 inch IPS TFT LCD Displays are suitable for various applications, including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
