    3.99 Inch 400×960 Bar Type Display Module with HDMI Board

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z0399HD01
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 100k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

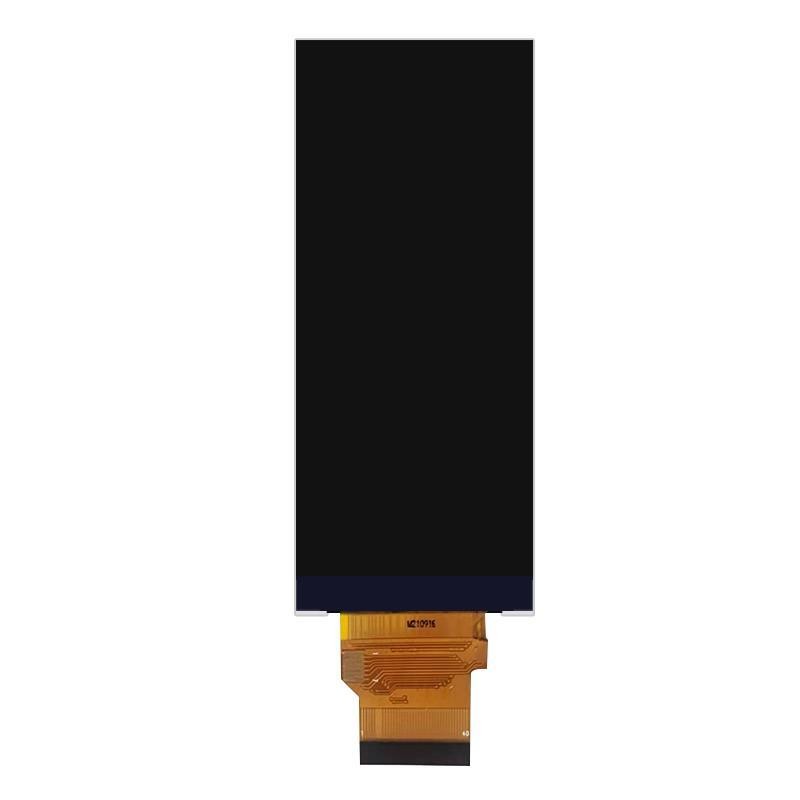

    3.99 Inch 400×960 Bar Type Display Module with HDMI Board

    3.99 Inch 400×960 Ips Bar Type TFT LCD Display With HDMI Board


    General Description

    Z0399HD01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 3.99” display area contains 400x960 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.If you need can take the HDMI board for this 3.99 inch bar type lcd module for testing.

    Z0399HD01 is a portrait mode 3.99 inch stretched bar type TFT LCD with a resolution of 400X960pixels.Its interface is 3SPI+18 Bit RGB

    40Pin with a contrast Ratio 1500:1.


    The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.


    General Data

    Model Name4 inch Stretched TFT Display
    Resolution400x960
    Model Size (W*H*T)mm42.9*102.08*2.25
    Display Area (W*H)mm39.18 x 94.032
    Interface3SPI+18 Bit RGB
    Display ModeNormally Black,Transmissive
    ViewingIPS
    Brightness350 cd/m2
    Pin number40 pin
    Driver ICST7701S
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

    Drawing



    Product Details


    3.99 Inch 400×960 Bar Type Display Module with HDMI Board3.99 Inch 400×960 Bar Type Display Module with HDMI Board


    TFT Applications:


    The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
