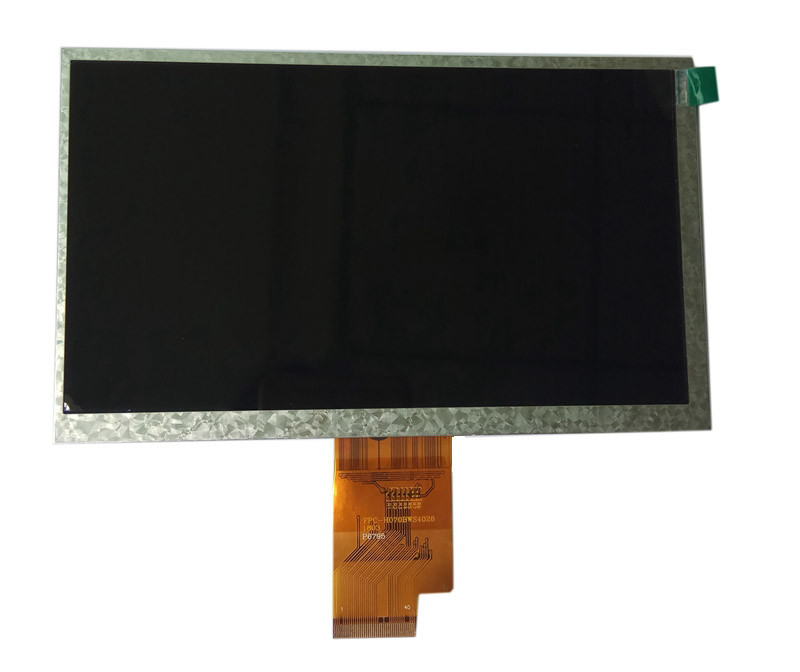

7 inch 1024x600 IPS LVDS TFT LCD Display For Industrial Control Applications

Aison Technology (HK) Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 7 inch 1024x600 IPS LVDS TFT LCD Display For Industrial Control Applications from wholesalers

    Buy cheap 7 inch 1024x600 IPS LVDS TFT LCD Display For Industrial Control Applications from wholesalers
    • Buy cheap 7 inch 1024x600 IPS LVDS TFT LCD Display For Industrial Control Applications from wholesalers
    • Buy cheap 7 inch 1024x600 IPS LVDS TFT LCD Display For Industrial Control Applications from wholesalers
    • Buy cheap 7 inch 1024x600 IPS LVDS TFT LCD Display For Industrial Control Applications from wholesalers

    7 inch 1024x600 IPS LVDS TFT LCD Display For Industrial Control Applications

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z070WS15
    Certification : ISO9001 / ISO14000/ROHS
    Price : 10~20usd/pc
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    7 inch 1024x600 IPS LVDS TFT LCD Display For Industrial Control Applications

    7 inch IPS TFT LCD Display with 1024x600 Resolution and LVDS Interface for Industrial Control Applications


    General Description

    Z070WS15 is a 7-inch IPS transmissive type color active matrix TFT LCD with a resolution of 1024x600 pixels. LVDS interfaces are increasingly popular for TFT displays requiring high-speed data transmission due to their high data transmission rate and low power consumption.


    The display features an aspect ratio of 16:9. The power voltage (DVDD) ranges from 3.0V to 3.6V, with a typical value of 3.3V. It includes an anti-glare surface panel, with an IPS viewing direction 85/85/85/85. The brightness ranges from 400 nits to 450 nits.


    This 7 inch LVDS TFT Displays Operating temperatures range from -20°C to +70°C, with storage temperatures from -30°C to +80°C. This TFT display model is suitable for various industrial control product applications.


    About this product


    1, High-Resolution Display: This 7.0-inch TFT LCD display boasts a high resolution of 1024x600, providing a crisp and clear visual experience for users.
    2, Multi-Angle Viewing: The display offers a wide viewing angle, allowing users to enjoy a clear and vibrant image from any position, making it ideal for applications where multiple viewers are present.

    3, Customizable Options: As an ODM (Original Design Manufacturer) product, this LCD display can be customized to meet specific user requirements, including branding and design modifications, as per the customer's needs.


    General Data

    Product Name7 inch IPS TFT Display
    Resolution1024x600
    Model Size (W*H*T)mm164.9*100*3.5
    Display Area (W*H)mm154.21 x 85.92
    InterfaceLVDS
    Display ModeNormally Black,Transmissive
    ViewingIPS
    Brightness450 cd/m2
    Pin number40 pin
    Contrast Ratio700:1
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

    Drawing


    Product Details

    7 inch 1024x600 IPS LVDS TFT LCD Display For Industrial Control Applications7 inch 1024x600 IPS LVDS TFT LCD Display For Industrial Control Applications


    TFT Applications:


    This 7inch IPS TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.
