2.1 Inch 480x480 Round TFT LCD Display Touch Screen For Water cooler Smart Home

• High-Quality Display: This 2.1 inch circular LCD display features a high-resolution 480x480 screen, providing a clear and vibrant visual experience for smart home applications, such as water coolers.
• Durable and Reliable: With an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C, this LCD module is designed to withstand various environmental conditions, ensuring reliable performance in harsh environments.
• User-Friendly Interface: The display features a capacitive touch panel, allowing users to interact with the screen easily and intuitively, making it ideal for applications where user input is crucial.
• Wide Viewing Angle: The IPS (In-Plane Switching) technology used in this LCD module provides a wide viewing angle, ensuring that the display remains clear and vibrant from any direction.
• Customizable and Versatile: With a 3SPI+18RGB interface and a ST7701S LCD driver IC, this display can be easily integrated with various control boards and systems, making it a versatile solution for various smart home applications, as per user requirements.

General Data

Item	Specifications
Type	IPS
Size	2.1 Inch
Outline Dimensions(mm)	76.175(W ) ×59.71 (H)×3.375(T)mm
Active Area(mm)	53.28*53.28
Resolution	480*480
Interface	3SPI+18RGB
LCD Driver IC	ST7701S
Touch Driver IC	CST328
Viewing Direction	ALL
Brightness	300cd/m2
Backlight	Withe LED
Touch Screen	Capacitive Touch Panel
Operating temperature	-20°C ~ 70°C
Storage temperature	-30°C ~ 80°C

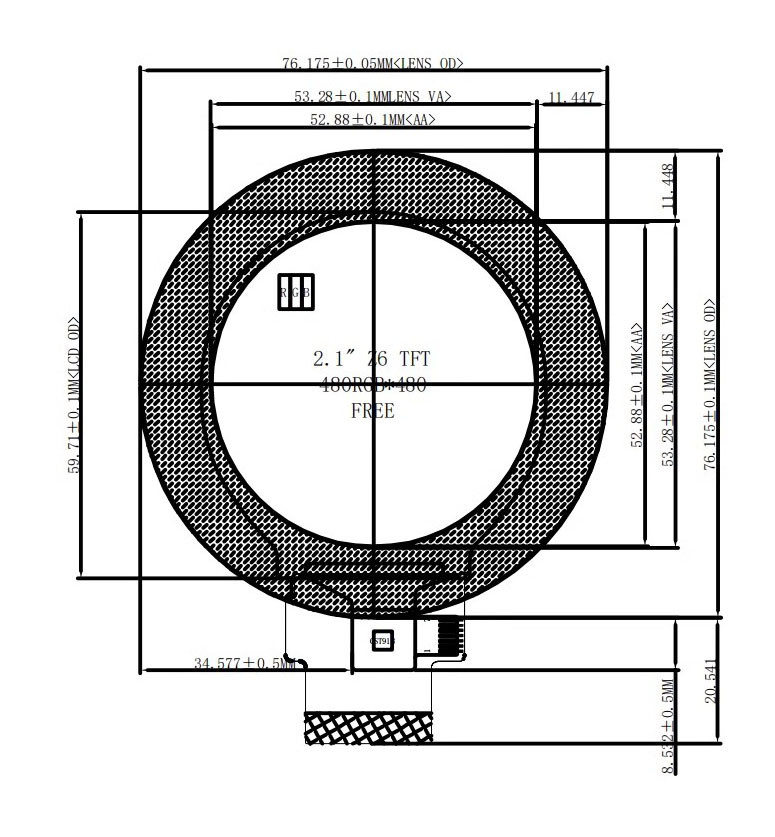

Drawing

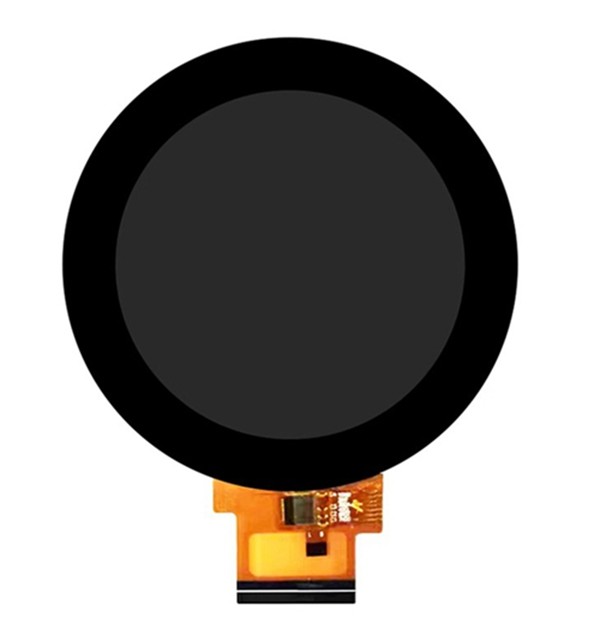

Product Details

TFT Applications

This 2.1 inch round lcd module is perfect for use in round display,instrument, smart home systems, wearables, and medical devices.
