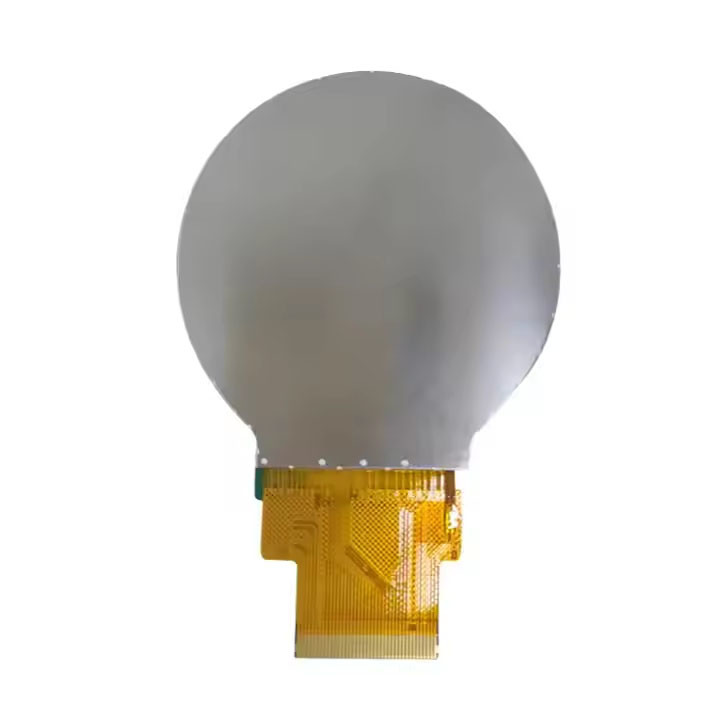

2.1 inch 480x480 Resolution Circular TFT LCD Module RGB Interface

• High-Resolution Display: This 2.1-inch circular LCD boasts a high-resolution 480x480 IPS TFT LCD screen, providing a clear and vibrant visual experience for various applications.
• Capacitive Touch Optional: The display features capacitive touch optional technology, allowing users to interact with the screen with ease and precision, ideal for applications where user input is required.
• Wide Operating Temperature Range: The LCD operates within a temperature range of -20°C to 70°C, making it suitable for use in various environments, from cold storage to warm working conditions.
• High Brightness and Viewing Angle: With a brightness of 300cd/m2, this LCD offers excellent visibility even in well-lit environments, and its IPS technology ensures a wide viewing angle, making it perfect for public displays.
• Compact Design and Durable: Measuring 56.18x59.71x2.3mm, this LCD is designed to be compact and lightweight, while its durable construction ensures a long lifespan, making it an ideal choice for various industrial and commercial applications.

General Data

Model Name	2.1 inch circular tft display
Resolution	480X480
Model Size (W*H*T)	56.18(W ) ×59.71 (H)×2.3(T)mm
Display Area (W*H)	53.28(W)*53.28(H)mm
Interface	3SPI+18 Bit RGB
Display Mode	Normally Black,Transmissive
Viewing Angle	85/85/85/85
Brightness	300 cd/m2
LCD Pin number	40 pin
Driver IC	ST77903
Operating temperatures	-20 to 70 ℃
Storage temperatures	-30 to 80 ℃

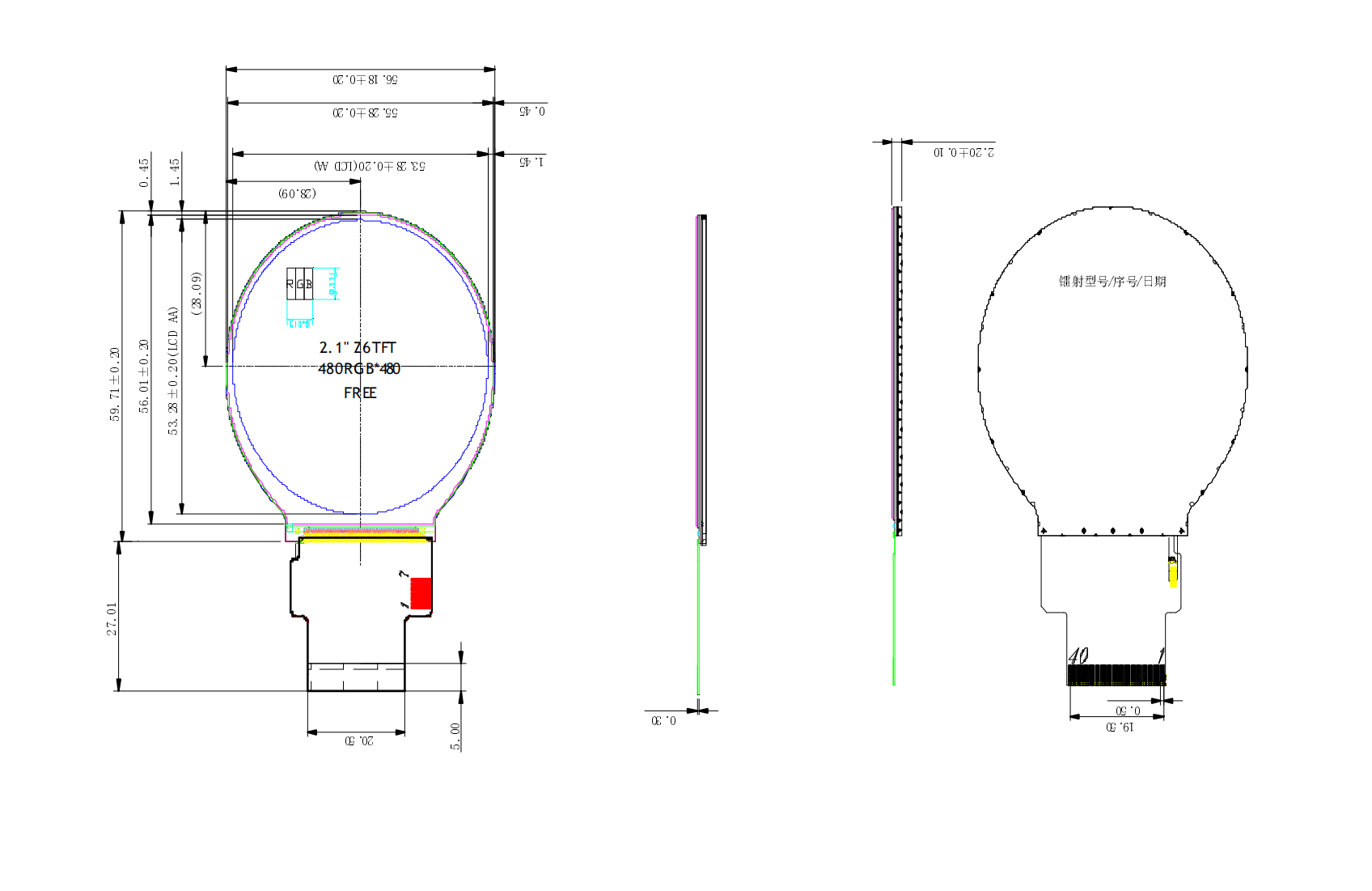

Drawing

Product Details

TFT Applications

This 2.1 inch round lcd module is perfect for use in smart home systems, wearables, and medical devices.
