    5.0" 1080x1080 Round TFT Display MIPI Interface 350 nits

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z050YMM-J40-68P0
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 100k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    5.0" 1080x1080 Round TFT Display MIPI Interface 350 nits

    BOE 5 inch Circular TFT LCD Display 1080x1080 Resolution Smart Home TFT Display


    General Description

    The Z050YMM-J40-68P0 is a circular and high-quality 5.0-inch IPS TFT LCD module manufactured by BOE. It boasts a high resolution of 1080x1080 RGB pixels on a black background, delivering an exceptional visual experience. The module's brightness of 350cd/m2 ensures clear visibility in various lighting conditions, providing optimal viewing comfort.

    Powered by the reliable HX8399C driver IC and supporting the MIPI 4 Lane interface, the Z050YMM-J40-68P0 guarantees consistent and dependable performance. It is designed to be compatible with a wide range of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This extensive compatibility makes it suitable for diverse applications, such as embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices.


    The module's Flexible Printed Circuit (FPC) is designed with a Board to Board (B2B) connector, allowing for effortless and direct connection to the B2B connector on your PCB. This simplifies the integration process and ensures a secure and reliable connection.

    General Data
    Product Name5 inch Circular TFT Display
    Number of Pixel1080x1080
    InterfaceMIPI
    Luminance(cd/m2)350cd/m2
    Active area127.008 (H) *127.008 (V)mm
    LCM (W x H x D)136.531*132.208*1.98mm
    Viewing Direction(eye)IPS
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

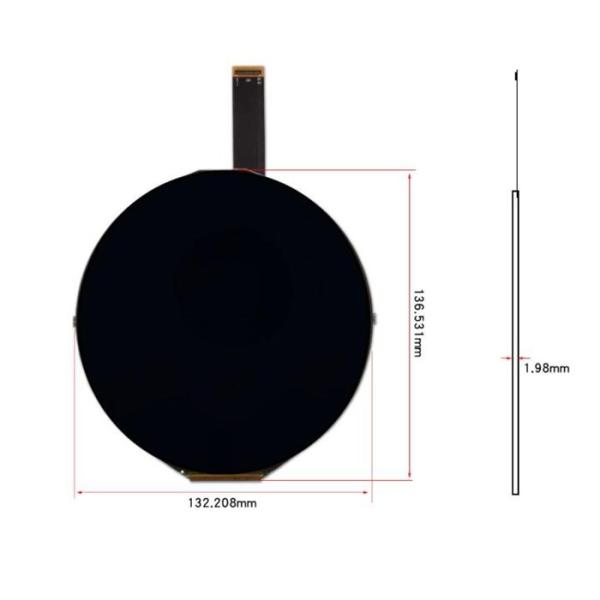

    Drawing
    Product Details
    5.0" 1080x1080 Round TFT Display MIPI Interface 350 nits
    Application:
    Circular display, instrument, smart home, advertising machine
