    4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2

    Ask Lasest Price
    Brand Name : AISON
    Model Number : NX4827P043-011C
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    4.3 Inch Nextion Intelligent HMI Display 480x272 Touch Display Module 300 cd/m2

    4.3 inch Nextion Intelligent Series HMI TFT Touch Display Module NX4827P043-011C


    Product Description:

    Introducing our high-performance 4.3" LCD-TFT Human Machine Interface (HMI) Display Module, designed for seamless integration into a wide range of applications. This compact and feature-rich module combines advanced display technology with powerful processing capabilities to deliver an exceptional user experience.

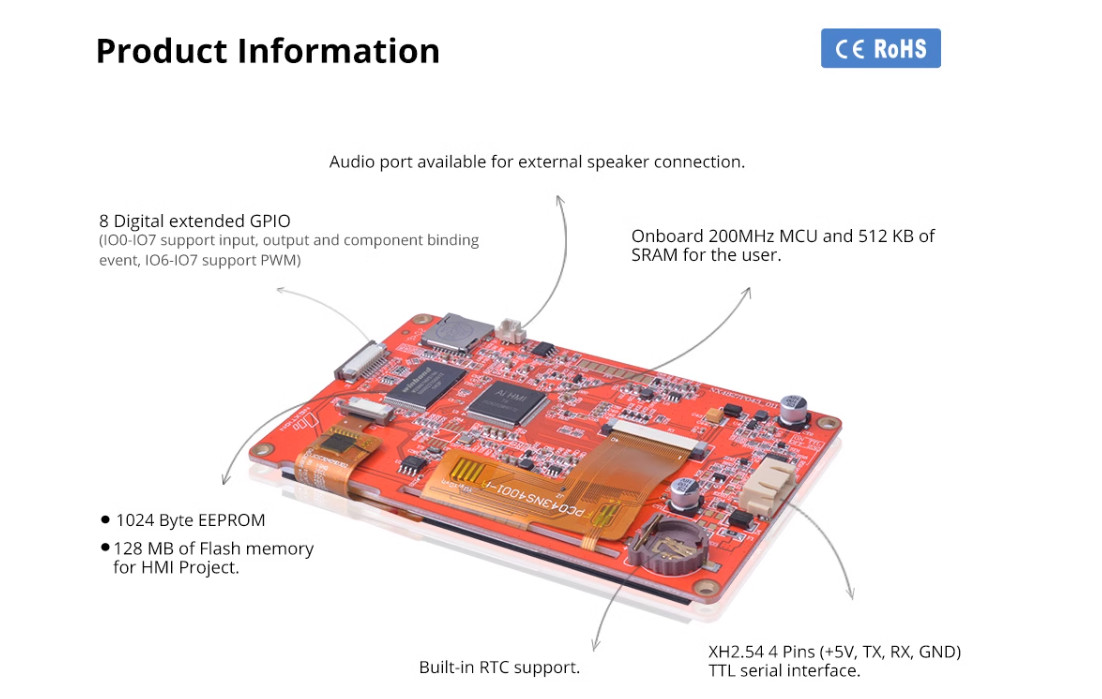

    Display Features:

    • 4.3-inch LCD-TFT display with a high-resolution 480 x 272 pixel format
    • Vivid RGB 65K true-to-life colors for stunning visual output
    • Choice of capacitive or resistive touch panel for versatile interaction
    • Brightness: 300 nits, ensuring clear visibility in various lighting conditions

    Processing Power:

    • Built-in 200MHz MCU for smooth and responsive operation
    • Memory: 512 KB SRAM, 128 MB Flash, and 1024 Byte EEPROM for ample storage and data retention

    Connectivity & Expandability:

    • XH2.54 4-pin TTL serial interface (+5V, TX, RX, GND) for easy connectivity
    • 1.25T-2-2A audio port for external speaker integration
    • 8 digital extended GPIO pins (IO0-IO7) with support for input, output, and event binding; IO6-IO7 additionally support PWM functionality

    Additional Features:

    • Built-in RTC (Real-Time Clock) for accurate timekeeping
    • Compact and lightweight design, ideal for space-constrained applications

    This module is perfect for industrial, automotive, and consumer electronics applications where a reliable, user-friendly interface is essential.

    Package includes:
    1 X 4.3" Nextion Intelligent HMI Display (NX4827P043-011C)
    1 X Micro USB to 2P Connector Board
    1 X 4-Pin Grove Cable
