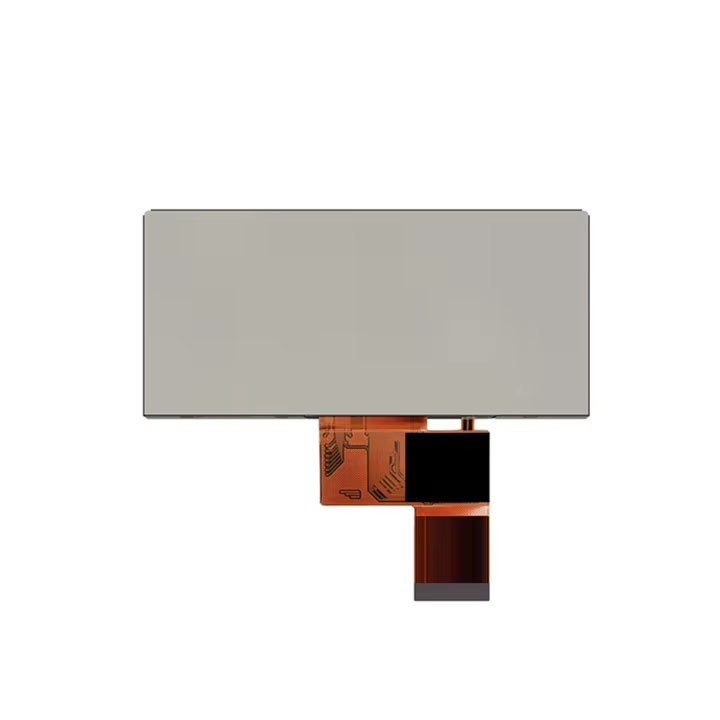

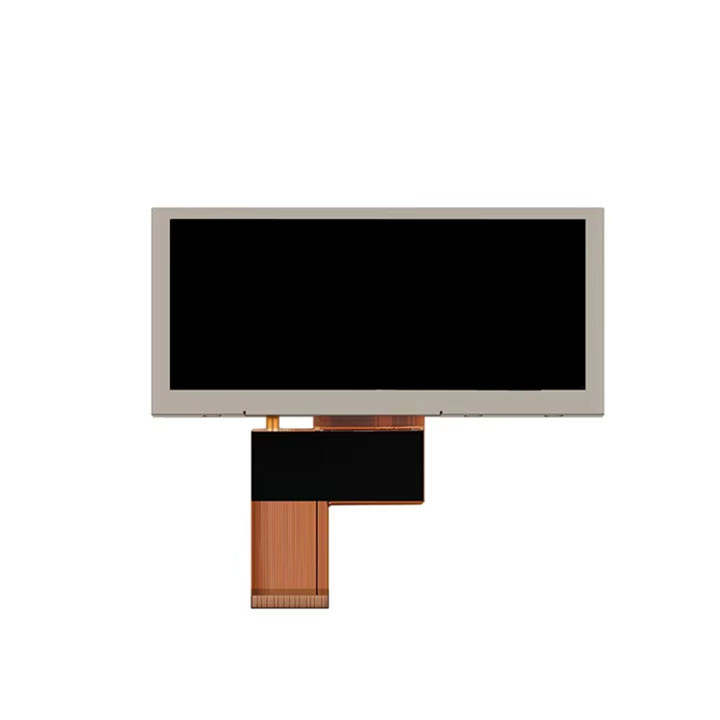

    3.9 Inch Bar Type LCD Display 480x128 Medical LCD Display SPI/MCU Interface

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z039WQ02J
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 100k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    3.9 Inch Bar Type LCD Display 480x128 Medical LCD Display SPI/MCU Interface

    High Brightness 3.9 inch Stretch Bar Display 480x128 SPI interface


    General Description

    • High Brightness and Clarity: This 3.9'' inch TFT LCD module boasts an impressive 1000 nits luminance, ensuring crisp and clear visuals in various lighting conditions. Perfect for applications where visibility is crucial.
    • Wide Viewing Angle: The IPS display technology provides an excellent viewing experience, allowing users to enjoy the content from almost any angle without compromising on color accuracy or brightness.
    • Customizable and Versatile: With a 480x128 MCU/SPI interface, this module can be easily integrated into various systems and applications, making it an ideal choice for developers and engineers.
    • Long-Term Reliability: Our manufacturer guarantees a continuous supply of this product, ensuring that customers can rely on a steady source of high-quality LCD modules for their projects.
    • Compact and Space-Efficient Design: The 3.9 inch display size makes it an excellent choice for applications where space is limited, such as in industrial control panels, medical devices, or other compact systems.

    General Data

    Model Name3.9 inch Bar Type LCD Display
    Resolution480x128
    Model Size (W*H*T)mm105.5*40.61*2.9mm
    Display Area (W*H)mm
    95.04 x 25.344 mm
    InterfaceSPI /8080-MCU
    Display ModeNormally Black,Transmissive
    ViewingIPS
    Brightness500 cd/m2
    Pin number40 pin
    Contrast Ratio
    600:1
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

    Drawing


    Product Details


    3.9 Inch Bar Type LCD Display 480x128 Medical LCD Display SPI/MCU Interface3.9 Inch Bar Type LCD Display 480x128 Medical LCD Display SPI/MCU Interface


    TFT Applications:

    The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. The 3.9 inch display size makes it an excellent choice for applications where space is limited, such as in industrial control panels, medical devices, or other compact systems.
