    4 Inch 480X800 Portrait IPS TFT Display 32 Pin With RGB Interface

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z0397WV02
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 100k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    4 Inch 480X800 Portrait IPS TFT Display 32 Pin With RGB Interface

    4" inch (3.97") IPS TFT LCD Display Module 480X800 RGB Interface


    General Description

    Introducing the Z0397WV02 - a high-performance 4.0-inch (3.97") TFT LCD module designed for exceptional display quality. With a resolution of 480x800 pixels, this module features a GC9305V controller and supports extra-wide viewing angles, delivering vibrant and crystal-clear visuals.

    This versatile display module is ideal for a wide range of applications, including embedded systems, industrial devices, security equipment, and handheld devices. It excels in environments requiring high-quality, colorful imagery.

    The Z0397WV02 offers flexible connectivity with support for:

    • 8080 interface (8-bit, 16-bit, 18-bit, 24-bit) and 3-wire SPI + RGB interface

    Featuring a FPC with a ZIF connector, this module ensures easy assembly and removal. Additionally, it supports landscape mode for enhanced versatility.

    Upgrade your device with the Z0397WV02 - where quality meets functionality.


    General Data

    Model Name3.97 inch IPS TFT Display
    Resolution480X800
    Model Size (W*H*T)mm57.14*96.85*2.15 mm
    Display Area (W*H)mm51.84x 86.40mm
    InterfaceRGB
    Display ModeNormally Black,Transmissive
    Driver IC
    GC9305V
    Brightness250 cd/m2
    Pin number32 pin
    Contrast Ratio
    900:1
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

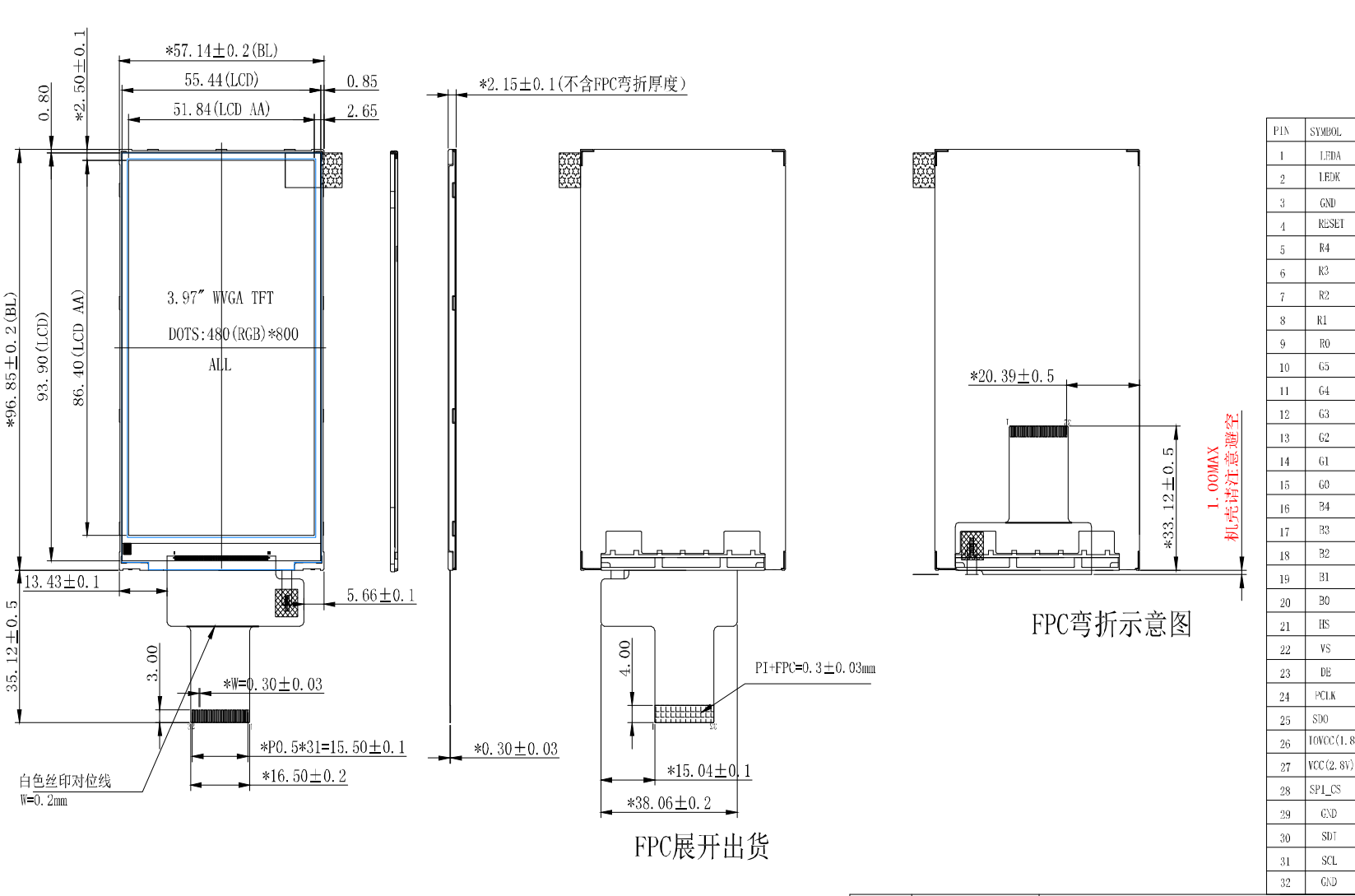

    Drawing



    Product Details


    4 Inch 480X800 Portrait IPS TFT Display 32 Pin With RGB Interface4 Inch 480X800 Portrait IPS TFT Display 32 Pin With RGB Interface


    TFT Applications:

    The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the portrait TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
