    1.6 inch 400x400 Circular LCD Module 230nits Color LCD Screen

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z016WQ01
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable based on quantity
    Payment Terms : TT, Western Union,,MoneyGram,Paypal
    Supply Ability : 200K/M
    • Product Details
    • Company Profile

    1.6 inch 400x400 Circular LCD Module 230nits Color LCD Screen


    1.6 inch round TFT LCD IPS Module with 400*400 resolution

    1. General Specifications
    Z016WQ01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC a back light unit. The 1.6 inch display area contains 400x400 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.


    Feature

    Spec

    Characteristics

    PN

    Z016WQ01

    Size

    1.6 inch

    Resolution

    400*400

    Interface

    QSPI

    Connect type

    Connector

    Color Depth

    16.7M

    Technology type

    a-Si

    Display Spec. Pixel pitch (mm)

    0.0996x0.0996

    Pixel Configuration

    R.G.B. Vertical Stripe

    Display Mode

    Normally Black

    Brightness

    230nits

    Viewing Direction

    ALL

    Mechanical

    LCM (W x H x D) (mm)

    42.92*45.87*2.2

    Active Area(mm)

    39.840*39.840

    With /Without TSP

    Without

    Weight (g)

    TBD

    LED Numbers

    2 LEDs

    Operating Temperature

    -20~70°C

    Storage Temperature

    -30~80°C


    2. Optical Specifications

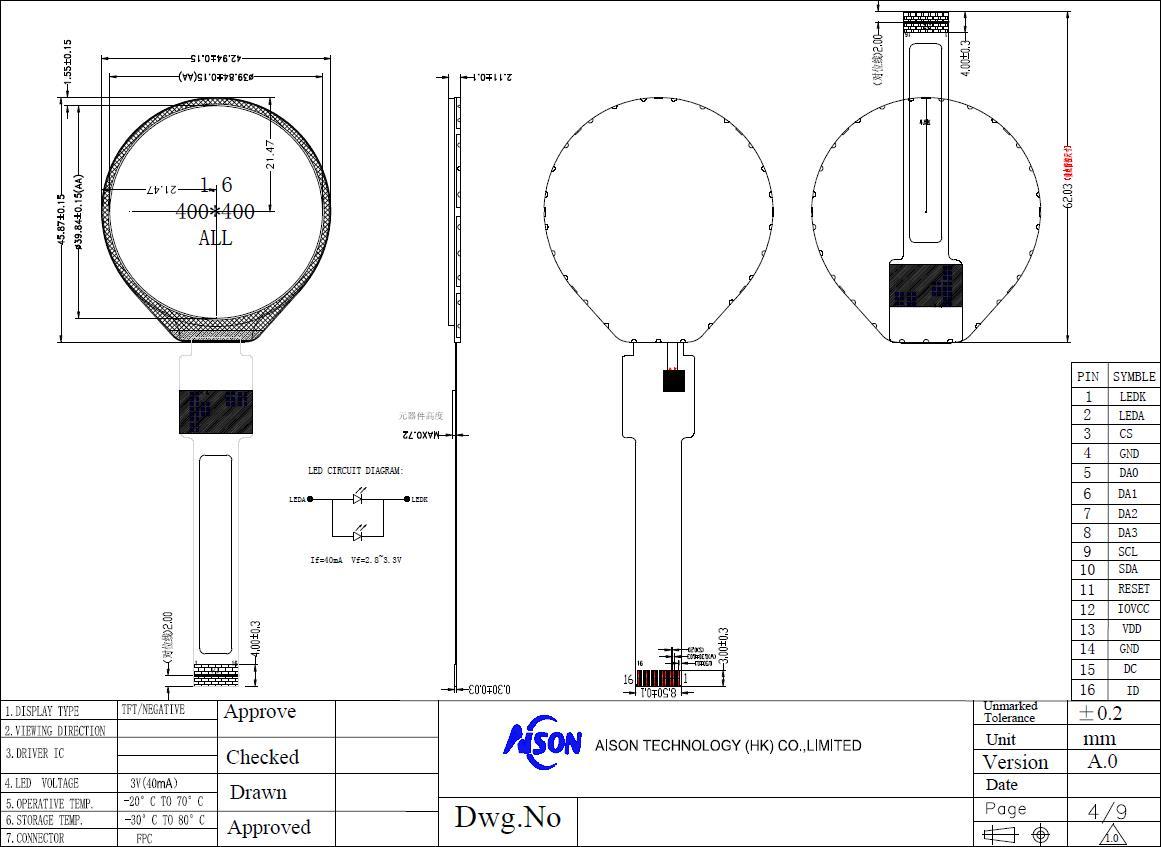

    3. Drawing picture



    4. Application

    Smart Watch, white goods, wrist watch
