1.6 Inch 400x400 Circular TFT Display ST77903 QSPI Interface Round Display

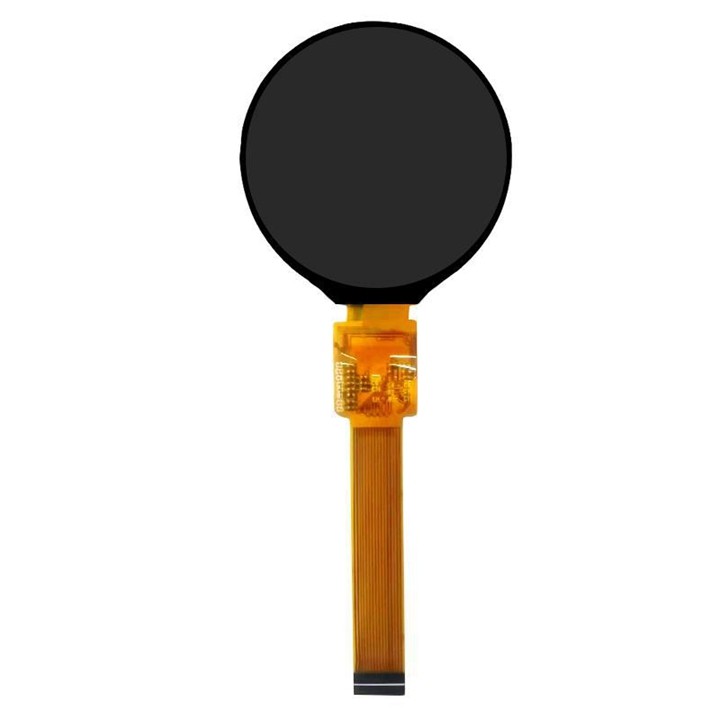

The Z016WQ01 is a circular module with a 1.6-inch IPS TFT LCD display. Manufactured by AISON, this module showcases a 400x400 RGB pixel resolution on a black backdrop, offering an attractive visual encounter. It offers clear visibility under various lighting conditions. Equipped with the ST77903 driver IC and supporting the QSPI interface, this module ensures dependable performance.

The Z016WQ01 is compatible with a variety of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This broad compatibility makes it suitable for a wide array of applications, such as embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.

The module's Flexible Printed Circuit (FPC) is designed with zif connector, allowing for effortless and direct connection to the zif connector on your PCB. This simplifies the integration process and ensures a secure and reliable connection.

AISON Technology offers customization options to meet specific requirements. We provide tailored solutions,
including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive an optimized display solution that perfectly matches their unique needs and preferences. Additionally, AISON can provide customized demo kits upon customer request.

General Data

Model Name	1.6 inch circular tft display
Resolution	400x400
Model Size (W*H*T)	42.92*45.87*2.2mm
Display Area (W*H)	39.840*39.840mm
Interface	QSPI
Display Mode	Normally Black,Transmissive
Viewing Angle	85/85/85/85
Brightness	230 cd/m2
LCD Pin number	16 pin
Driver IC	ST77903
Operating temperatures	-20 to 70 ℃
Storage temperatures	-30 to 80 ℃

Drawing

Product Details

TFT Applications

This 1.6 inch round lcd module is perfect for use in smart home systems, wearables, and medical devices.
