    2.1 inch Round LCD Module SPI IPS Modules With 480*480 Resolution 300 nits

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z021WQI-B40L-0623
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable based on quantity
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    • Product Details
    • Company Profile

    2.1 inch Round LCD Module SPI IPS Modules With 480*480 Resolution 300 nits

    2.1 inch round TFT LCD IPS Module with 480*480 resolution for smart home

    1. General Specifications

    The Z021WQI-B40L-0623 is a compact TFT-LCD module designed for high-performance display applications. This module integrates a high-quality TFT-LCD panel, advanced driver IC, flexible flat cable (FPC), and a reliable backlight unit to ensure optimal performance.

    With a 2.1-inch display area, this module features a resolution of 480x480 pixels, delivering vibrant visuals with a color depth of up to 16.7 million colors.

    Compliant with RoHS environmental standards, this product is an eco-friendly choice for various industrial and consumer applications.


    Feature

    Spec

    Characteristics

    PN

    Z021WQI-B40L-0623

    Size

    2.1 inch

    Resolution

    480*480

    Interface

    3SPI+18RGB

    Connect type

    Connector

    Color Depth

    16.7M

    Technology type

    a-Si

    Display Spec. Pixel pitch (mm)

    -

    Pixel Configuration

    R.G.B. Vertical Stripe

    Display Mode

    Normally Black

    Brightness

    300nits

    Viewing Direction

    ALL

    Mechanical

    LCM (W x H x D) (mm)

    56.18 *59.71*2.3

    Active Area(mm)

    53.28*53.28

    With /Without TSP

    Without

    Weight (g)

    TBD

    LED Numbers

    4 LEDs

    Operating Temperature

    -20~70°C

    Storage Temperature

    -30~80°C

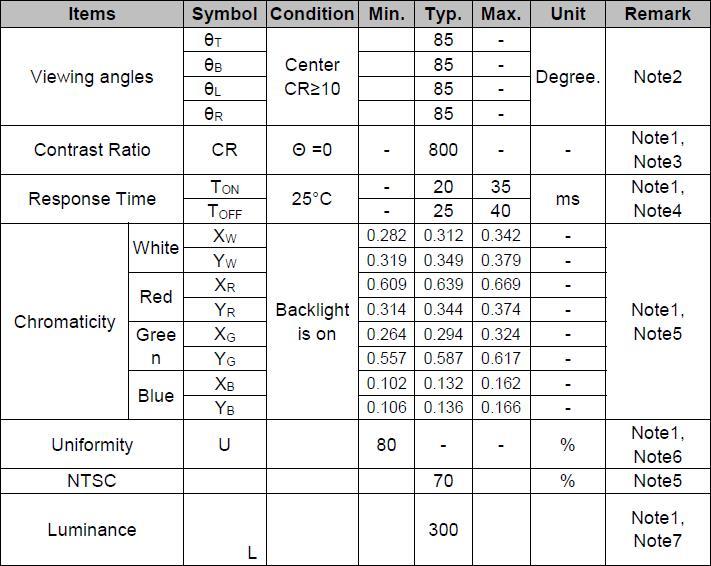

    2. Optical Specifications


    3. Drawing picture



    4. Application

    Smart Watch, white goods, wrist watch
