    5.0 IPS TFT LCD Module, TFT 5-inch with Resistive Touch Panel 800X480 Resolutioin

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z050WV20-T
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    5.0 IPS TFT LCD Module, TFT 5-inch with Resistive Touch Panel 800X480 Resolutioin

    5.0 IPS TFT LCD Module, TFT 5-inch with Resistive Touch Panel 800X480 Resolutioin


    Display General Description

    Introducing the Z050WV20-T, a compact and powerful 5.0-inch TFT LCD module designed to deliver exceptional display performance. This module seamlessly integrates a resistive touch panel, offering an intuitive and responsive user interface. With a resolution of 800x480 pixels and a 16:9 aspect ratio, it provides crisp and vibrant visuals on its sleek 5-inch TFT-LCD screen.


    The Z050WV20-T features outline dimensions of 120.7 x 75.8 mm, with an active area of 108.0 x 64.80 mm, ensuring a space-efficient design ideal for integration into various electronic devices. Utilizing IPS display technology, this module offers wide viewing angles (left: 85 / right: 85 / up: 85 / down: 85 degrees), enhancing visibility from multiple perspectives.


    Equipped with the advanced ST7262 IC and supporting a 24-bit RGB interface, the Z050WV20-T ensures seamless and high-quality image rendering. Its anti-glare surface reduces light reflection, making it suitable for diverse lighting conditions. With a brightness of 300 nits (typical) and a contrast ratio of 1000:1, this display excels in minimizing glare and reducing eye fatigue.


    Designed for durability, the Z050WV20-T operates in a wide temperature range from -30℃ to +80℃, with storage temperatures between -35℃ and +85℃. The supply voltage ranges from 3.1V to 3.6V, with a typical value of 3.3V, ensuring adaptability across different electronic systems. Whether for industrial applications, medical devices, or consumer electronics, the Z050WV20-T is a versatile and reliable display solution.

    General Data

    Product Name5.0 inch IPS TFT Display with Resistive Touch
    Number of Pixel800x480
    InterfaceRGB 24bit
    Luminance(cd/m2)300cd/m2
    Active area
    120.7*76.3*4.4mm
    LCM (W x H x D)
    108x64.8 mm
    Viewing Direction(eye)IPS/ALL
    Operating temperatures-30 to 80 degree
    Storage temperatures-35 to 85 degree

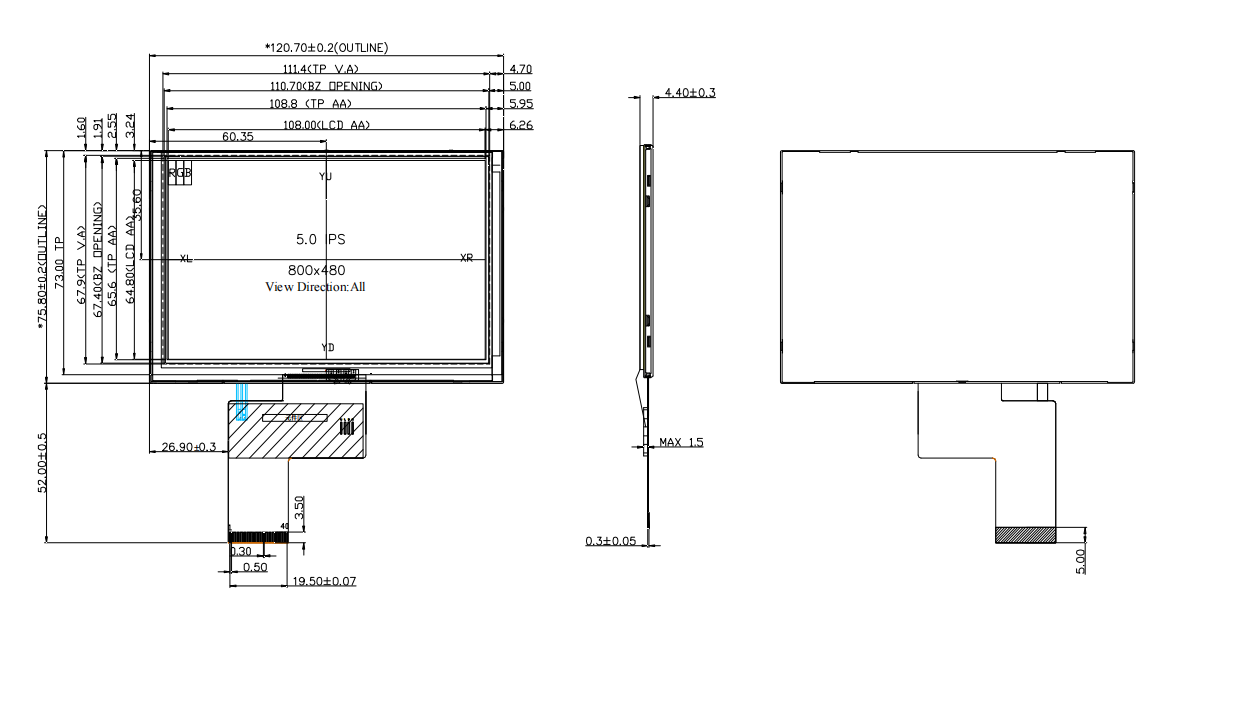

    Drawing



    Product Details

    5.0 IPS TFT LCD Module, TFT 5-inch with Resistive Touch Panel 800X480 Resolutioin5.0 IPS TFT LCD Module, TFT 5-inch with Resistive Touch Panel 800X480 Resolutioin


    TFT Applications

    This 5 inch TFT LCD module is the ideal choice for a range of applications, including dashcams, portable medical devices, measurement instruments, testing equipment, digital photo frames, and small entertainment systems.
