| Brand Name : | AISON |
| Model Number : | Z070TN92-T |
| Certification : | ISO9001 / ISO14000/ROHS |
| Price : | Negotiable based on quantity |
| Payment Terms : | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 200k/month |
| Delivery Time : | 7 working days |

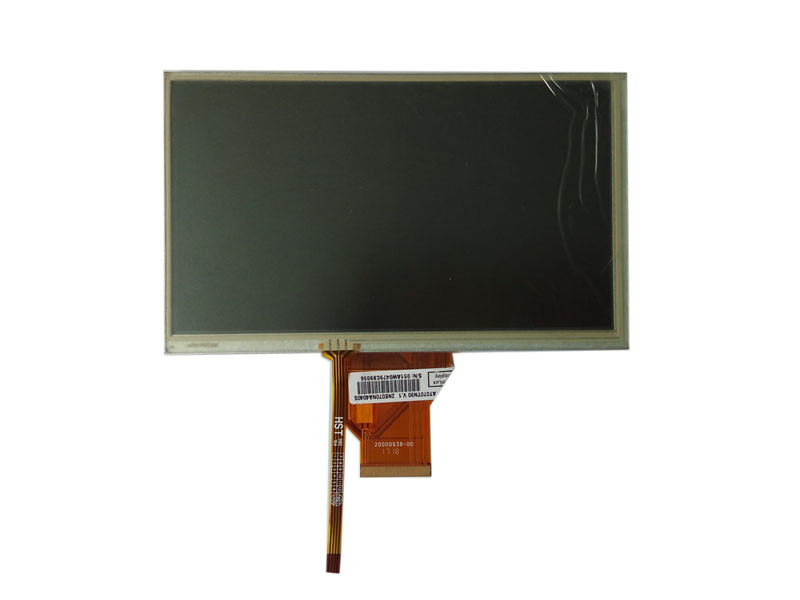

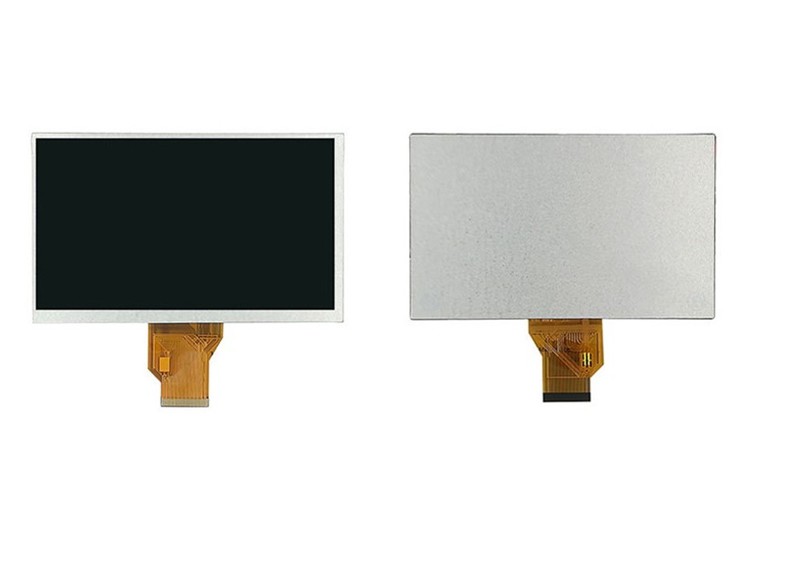

7 Inch 800X480 Resistive Touch Panel 50 Pin RGB 24 Bit 7 inch RTP Display
General Data
| Model Name | 7 inch RTP TFT LCD Display |
| Resolution | 800*(RGB)*480 |
| Model Size (W*H*T)mm | 164.9*100*6.9 mm |
| Display Area (W*H)mm | 154.08 x 85.92mm |
| Interface | RGB |
| Display Type | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 300 cd/m2 |
| Pin number | 50 |
| Interface | RGB |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |

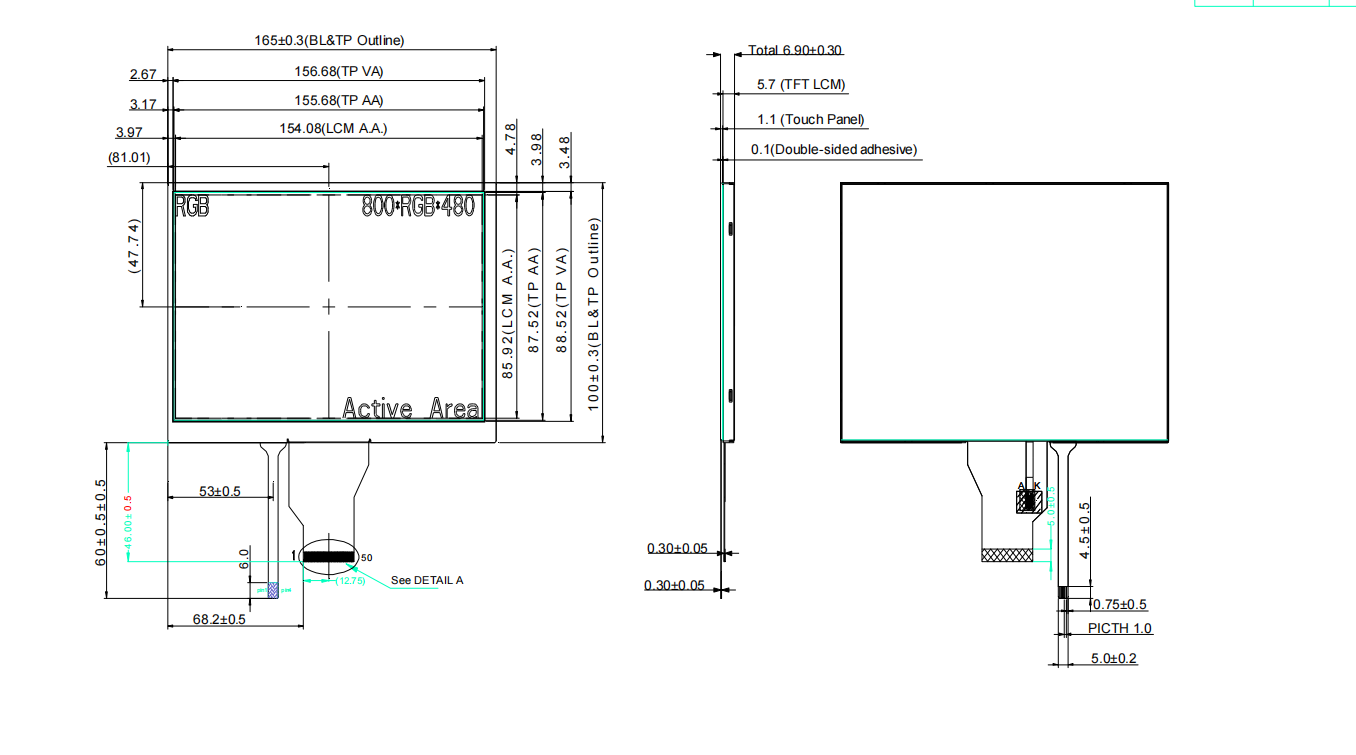

Drawing

Product Details


TFT Applications:
This product has a wide range of applications and is suitable for use in embedded systems, medical instruments, GPS navigation, surveillance systems, and various industrial control products.

|
