    7 inch 1024x600 LVDS TFT IPS Display Capacitive Touch Display with Custom Oversized Coverglass

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z070WS15-CT
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable based on quantity
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    7 inch 1024x600 LVDS TFT IPS Display Capacitive Touch Display with Custom Oversized Coverglass

    7 inch 1024x600 LVDS TFT IPS Display Capacitive Touch Display with Custom Oversized Coverglass


    General Description

    The Z070WS15 is a 7-inch IPS transmissive-type color active matrix TFT LCD with a resolution of 1024x600 pixels. Equipped with LVDS interfaces, this tft display is ideal for applications requiring high-speed data transmission due to its high data transfer rate and low power consumption.


    This 7 inch lcd module Key features include a 16:9 aspect ratio, a power voltage (DVDD) range of 3.0V to 3.6V (typical 3.3V), and an anti-glare surface panel. The IPS viewing angles are 85/85/85/85, and the brightness ranges from 400 to 450 nits.


    The 7 inch display module operates within a temperature range of -20°C to +70°C and can be stored in temperatures from -30°C to +80°C. This 7-inch LVDS TFT display is well-suited for various industrial control applications, offering reliable performance and versatility.


    About this product


    1, High-Resolution Display: This 7.0-inch TFT LCD display boasts a high resolution of 1024x600, providing a crisp and clear visual experience for users.


    2, Multi-Angle Viewing: The display offers a wide viewing angle, allowing users to enjoy a clear and vibrant image from any position, making it ideal for applications where multiple viewers are present.


    3, Customizable Options: As an ODM (Original Design Manufacturer) product, this LCD display can be customized to meet specific user requirements, including branding and design modifications, as per the customer's needs.


    General Data

    Product Name7 inch IPS TFT Display
    Resolution1024x600
    Model Size (W*H*T)mm164.9*100*5.07mm
    Display Area (W*H)mm154.21 x 85.92
    InterfaceLVDS
    Display ModeNormally Black,Transmissive
    ViewingIPS
    Brightness450 cd/m2
    Pin number40 pin
    Contrast Ratio700:1
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

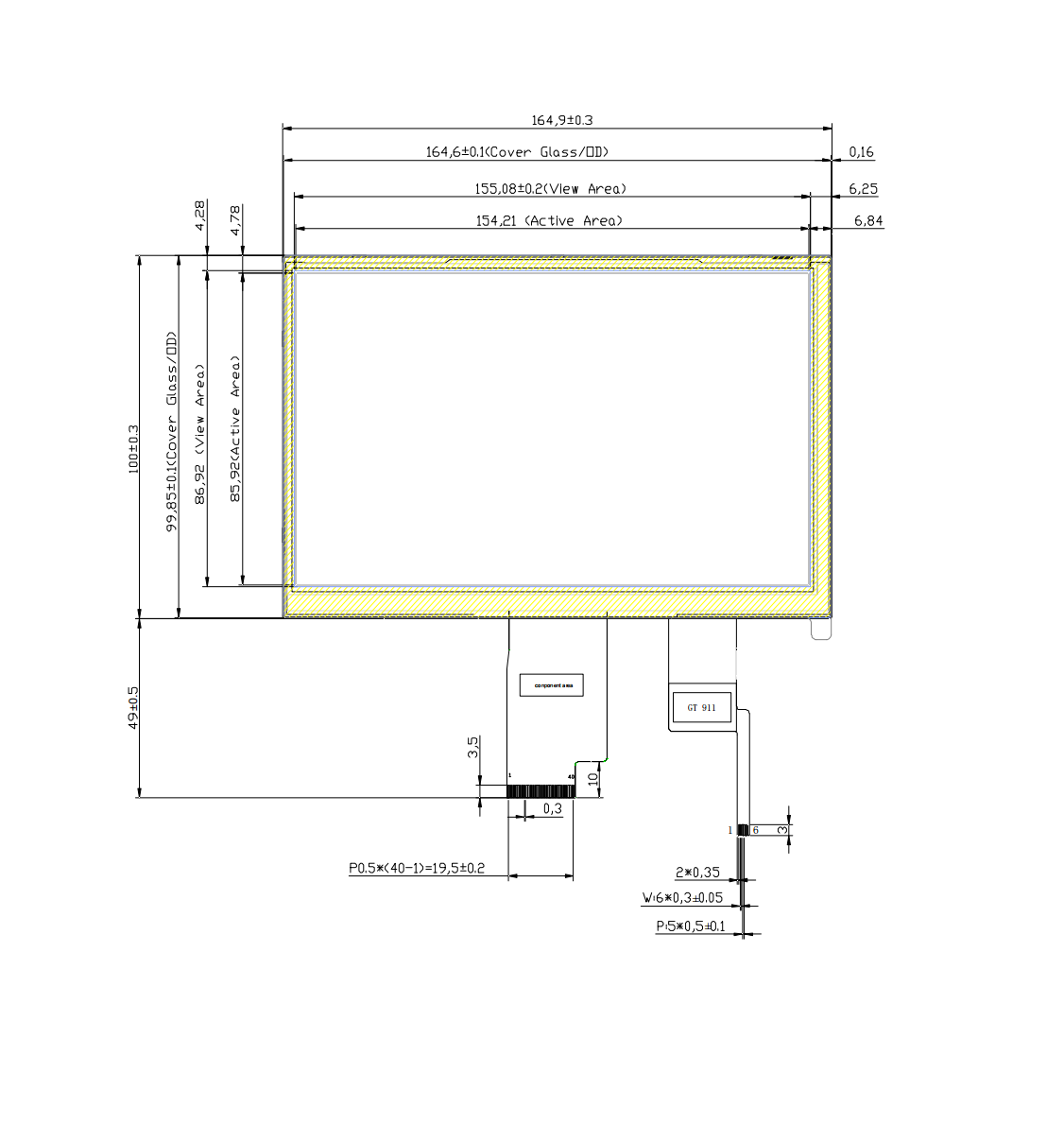

    Drawing


    Product Details

    7 inch 1024x600 LVDS TFT IPS Display Capacitive Touch Display with Custom Oversized Coverglass7 inch 1024x600 LVDS TFT IPS Display Capacitive Touch Display with Custom Oversized Coverglass



    TFT Applications:


    This 7inch IPS TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.
