    4.3 inch IPS LCD Module 480x272 Capacitive TFT Touch Screen 450 Cd/M2 RGB 24 Bit Interface

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z043WQ34H-CT
    Certification : ISO9001 / ISO14000/ROHS
    Price : 10~15usd/pc
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    4.3 inch IPS LCD Module 480x272 Capacitive TFT Touch Screen 450 Cd/M2 RGB 24 Bit Interface

    4.3 inch 480x272 PCAP IPS TFT LCD Display RGB 24 Bit Interface


    General Description
    Z043WQ34H-CT is a 4.3 inch wide view angle IPS TFT LCD module, with 480x272 pixels and 400nits brightness (typical value) with Projected Capacitive Touch Panel (PCAP). This TFT model is built in with ILI6485 driver IC, supporting 24-bit RGB interfaces.
    This 4.3” IPS TFT has a viewing angle wider than TN TFT, its viewing angles are Left:85 / Right:85 / Up:85 / Down:85 degrees (typical value). The supply voltage for LCM (VCC) of 34HZ043WQ-CT is from 3.0V to 3.6V. The module has a glare-surface glass, 16:9 aspect ratio, 1000:1 contrast ratio (typical value). It can operate at temperatures from -20℃ to +70℃ and its storage temperatures are from -30℃ to +80℃.

    AISON Technology offers tailored solutions, allowing customers to customize the FPC, integrate cover lenses, add touch screens, or even customize driver boards. This flexibility ensures that customers receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, upon customer request, AISON can provide customized demo kits, further assisting in the evaluation and decision-making process.

    General Data

    Model Name4.3 inch PCAP IPS TFT Display
    Resolution480x272
    Model Size (W*H*T)
    105.45*67.15*4.52 mm
    Display Area (W*H)95.04 x 53.856 mm
    Interface24 Bit RGB
    Display ModeNormally Black,Transmissive
    Viewing Angles85/85/85/85
    Brightness400 cd/m2
    Pin number40 pin
    Driver IC
    ILI6485
    Operating temperatures-20 to 70
    Storage temperatures-30 to 80

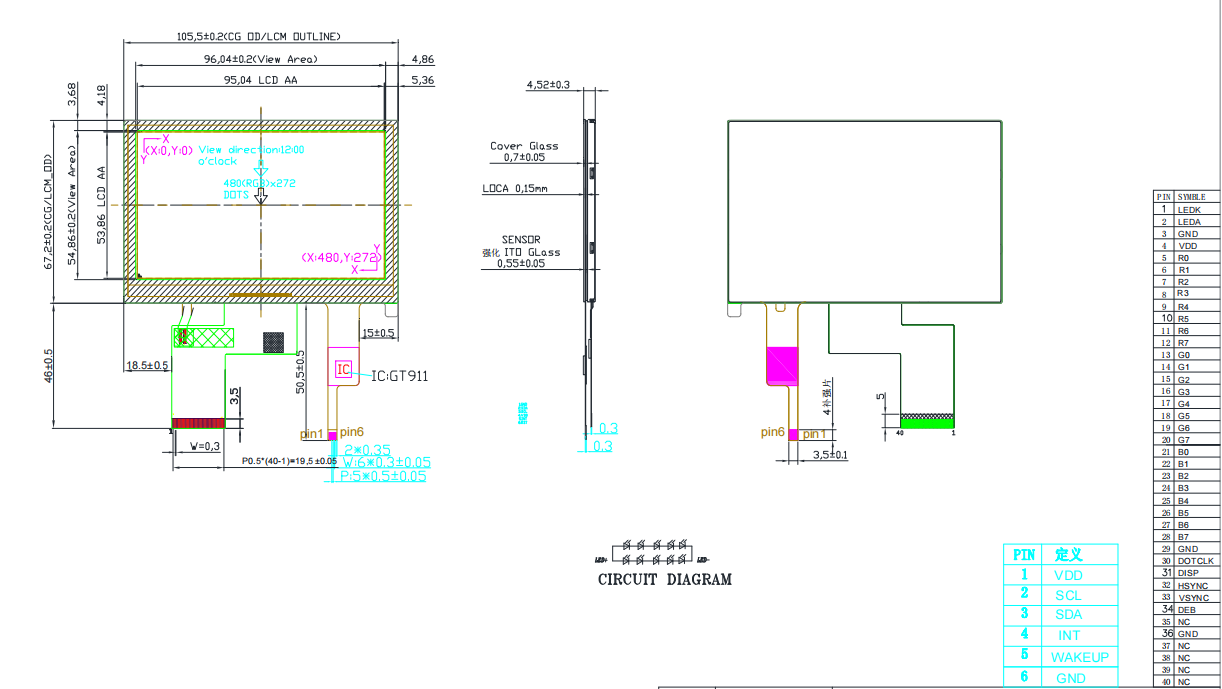

    Drawing


    Product Details


    4.3 inch IPS LCD Module 480x272 Capacitive TFT Touch Screen 450 Cd/M2 RGB 24 Bit Interface4.3 inch IPS LCD Module 480x272 Capacitive TFT Touch Screen 450 Cd/M2 RGB 24 Bit Interface


    TFT Applications


    This 4.3 inch 480x272 IPS TFT LCD Displays are suitable for various applications, including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
