    3.5 Inch 320x240 RGB Interface 300 Cd/M2 TFT Capacitive Touch Screen Color Touch Display

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z035NC111-CT
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    3.5 Inch 320x240 RGB Interface 300 Cd/M2 TFT Capacitive Touch Screen Color Touch Display

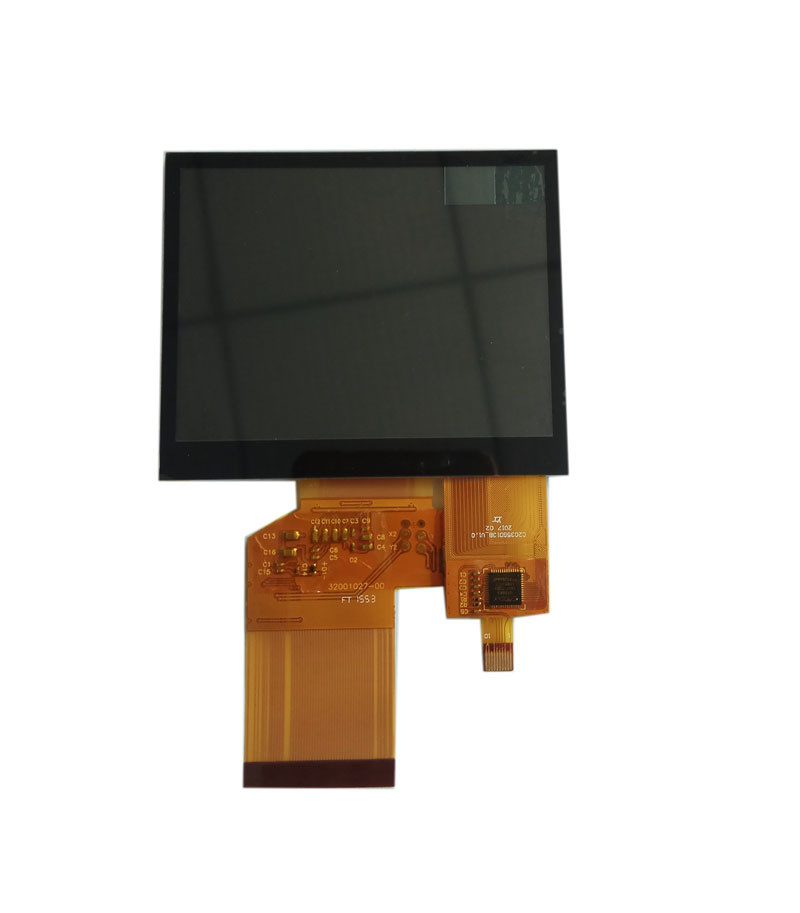

    3.5 inch TFT LCD Module Color Display with Capacitive Touch 320x240 RGB Interface


    Display General Description

    The Z035NC111-CT is a 3.5-inch Projected Capacitive Touch Panel TFT LCD display module, featuring a brightness of 300 nits (typical value).With a 350:1 (typical value) contrast ratio, it ensures clear and stable images under various lighting conditions. This display module has a resolution of 320x240 pixels, offering sufficient clarity for portable devices. Whether used in field measurements, industrial environments, or testing applications, the Z035NC111-CT guarantees reliable performance.


    The Z035NC111-CT uses the HX8238D driver IC and supports a 24-bit RGB interface for efficient and vibrant color display. The touch panel is equipped with GT5663 IC and supports I2C interface, with 5-point capacitive touch capability, offering a seamless and responsive user experience.


    General Data

    Model Name3.5 inch TFT Display
    Resolution320x240
    Model Size (W*H*T)76.90*63.9*4.71mm
    Display Area (W*H)70.08 x 52.56mm
    InterfaceRGB
    Display ModeNormally White,Transmissive
    Viewing12 o'clock
    Brightness300 cd/m2
    Pin number54 pin
    Driver ICHX8238D
    Operating temperatures-20 to 70 ℃
    Storage temperatures-30 to 80 ℃

    Drawing


    Product Details

    3.5 Inch 320x240 RGB Interface 300 Cd/M2 TFT Capacitive Touch Screen Color Touch Display3.5 Inch 320x240 RGB Interface 300 Cd/M2 TFT Capacitive Touch Screen Color Touch Display3.5 Inch 320x240 RGB Interface 300 Cd/M2 TFT Capacitive Touch Screen Color Touch Display

    TFT Applications

    This 3.5 inch 320x240 lcd module whether used in field measurements, industrial environments, or testing applications, the Z035NC111-CT guarantees reliable performance.
