    7 Inch 800x480 TFT Display Module RGB 40 Pin Capacitive TFT Touch Screen

    LCD Display 7 inch TFT LCD Display Module with RGB 40 Pin Captouch Panel


    General Description

    The Z070WV01-CT is a high-performance 7-inch TFT LCD module featuring a Projected Capacitive Touch Panel (PCAP) with a resolution of 800x480 pixels. Equipped with the EK79713CA and EK73202AB2 driver ICs, this LCD module supports a 24-bit RGB interface and includes a DC-to-DC function for efficient power management. It offers an impressive contrast ratio of 800:1 (typical) and a brightness of 400 nits (typical), ensuring vivid and clear display quality. The aspect ratio is 16:9, and it features a normally white, transmissive LCD type with a viewing direction of 12H and grayscale inversion direction of 6H.


    The integrated Projected Capacitive Touch Panel is powered by the GT911 IC, which supports an I2C interface for seamless communication. The module operates on a logic supply voltage (VCC) ranging from 3.0V to 3.6V, with a typical value of 3.3V. Designed for reliable performance, the Z070WV01-CT operates within a temperature range of -20℃ to +70℃ and can be stored in temperatures from -30℃ to +80℃, making it suitable for a wide range of applications.


    General Data

    Model Name7 inch TFT Display with touch screen
    Resolution800*(RGB)*480
    Model Size (W*H*T)mm164.9*100*7.1mm
    Display Area (W*H)mm154.08 x 85.92mm
    InterfaceRGB
    Display ModeNormally White TN,Transmissive
    Viewing12:00 o'clock
    Brightness400 cd/m2
    Pin number40 pin
    InterfaceRGB 24 bit
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

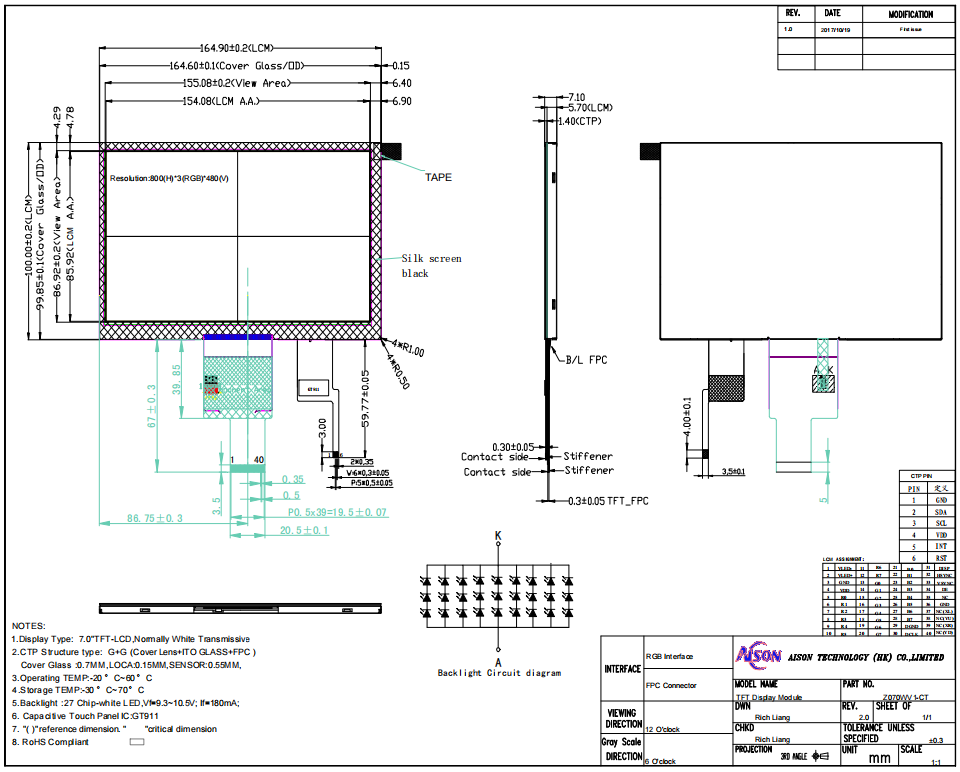

    Drawing


    Product Details

    7 Inch 800x480 TFT Display Module RGB 40 Pin Capacitive TFT Touch Screen

    TFT Applications:

    The 7 inch tft displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
