    10.4 inch AUO 800X600 LVDS TFT LCD Display 400cd/m2 for Industrial

    Ask Lasest Price
    Brand Name : AISON
    Certification : ISO9001 / ISO14000/ROHS
    Price : 90~100usd/pc
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 300k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    10.4 inch AUO 800X600 LVDS TFT LCD Display 400cd/m2 for Industrial

    10.4 inch AUO 800X600 LVDS TFT LCD Display 400cd/m2 for Industrial


    General Description
    This specification applies to the Color Active Matrix Liquid Crystal Display G104STN01.0
    composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system.
    The screen format is intended to support SVGA (800(H) x 600(V)) screen and 16.2M (RGB
    8-bits) or 262k colors (RGB 6-bits).
    LED driving board for backlight unit is included in G104STN01.0 and the LED unit is replaceable.
    All input signals are LVDS interface and compatible with G104SN02 V2.
    G104STN01.0 designed with wide viewing angle; wide temperature and long life LED backlight is
    well suited for industial applications.
    G104STN01.0 is a RoHS product.
    G104STN01.0 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, 6/8 bit, Matte . Based on its features,it is recommend that this model be applied to Industrial etc.

    General Data

    Model NameAUO 10.4 Inch TFT Display
    Resolution800x600
    Model Size (W*H*T)243(W)×184(H)×7(D) mm
    Display Area (W*H)211.2(W)×158.4(H) mm
    InterfaceLVDS
    Display ModeNormally Black,Transmissive
    Viewing6 o'clcok
    Brightness400 cd/m2
    Pin number20 pin
    Contrast Ratio700:1
    Operating temperatures-30 ~ 80 °C
    Storage temperatures-30 ~ 80 °C

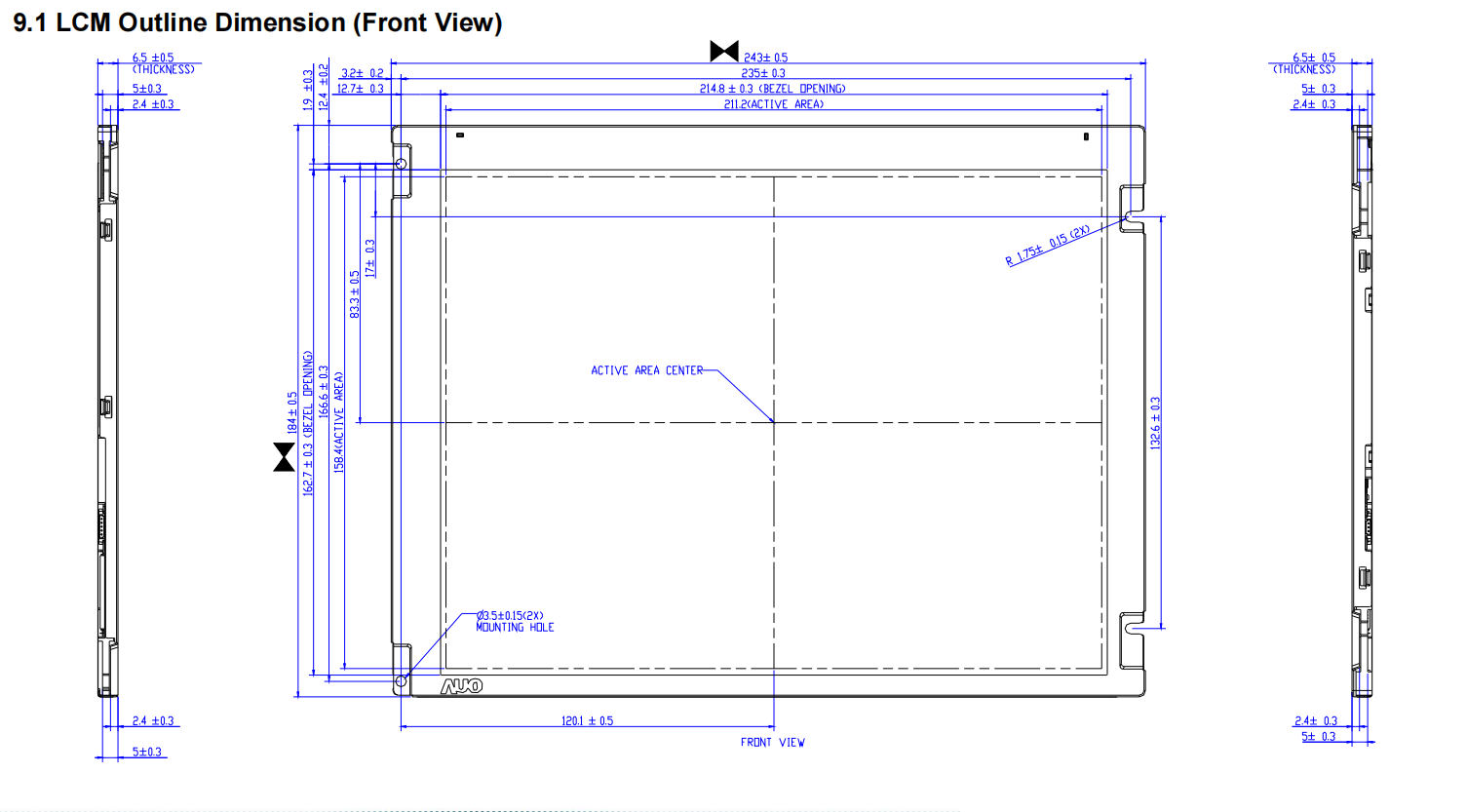

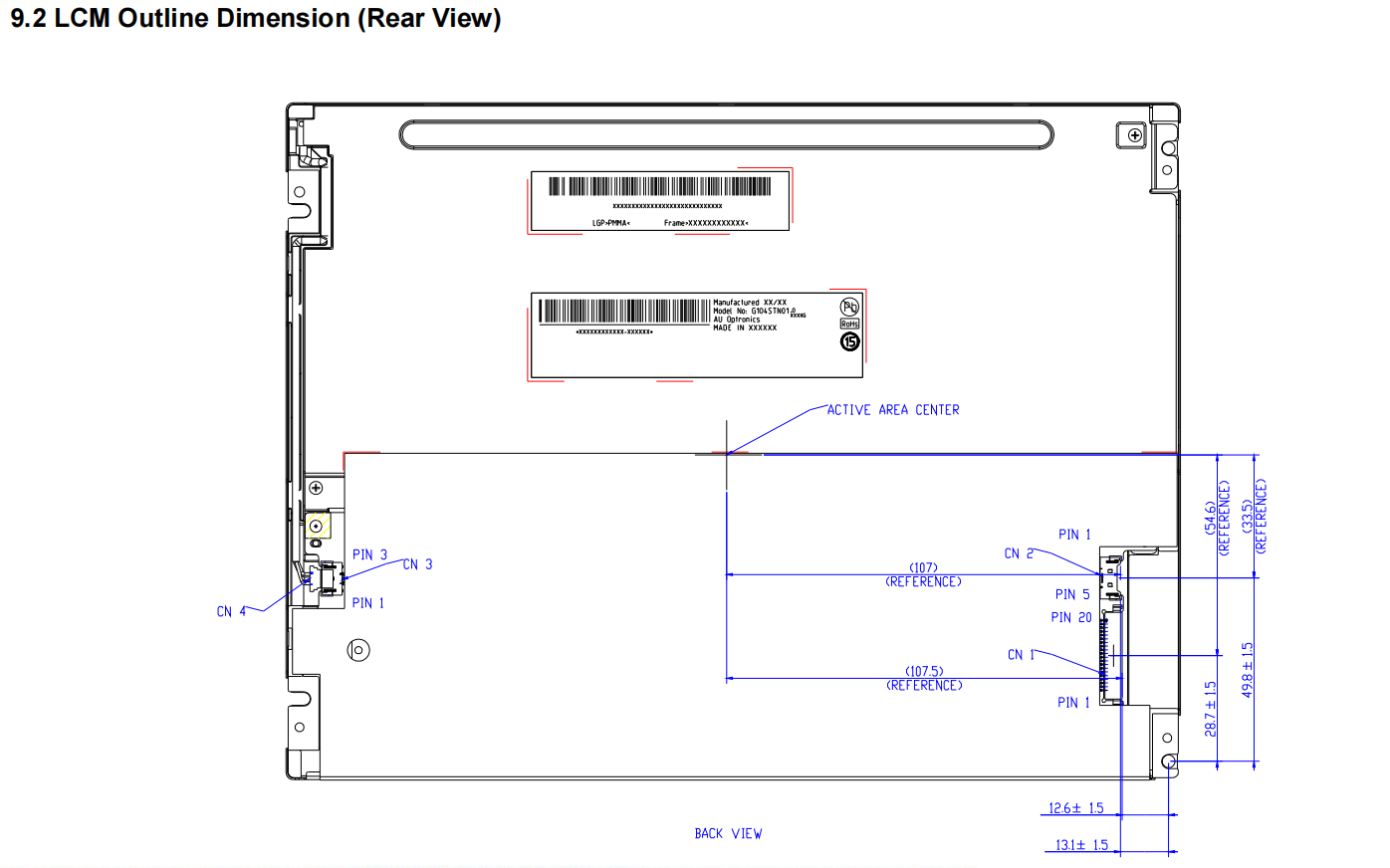

    Drawing



    Product Details



    TFT Applications:


    This AUO 10.4 inch 800x600 TFT Displays it is recommend that this model be applied to Industrial etc.
