    4.58'' Stretched Display 320x960 4.6 inch Bar Type LCD Display RGB 40Pin

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z046HD02
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 100k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    4.58'' Stretched Display 320x960 4.6 inch Bar Type LCD Display RGB 40Pin

    4.58'' Stretched Display 320x960 4.6 inch Bar Type LCD Display RGB 40Pin


    General Description

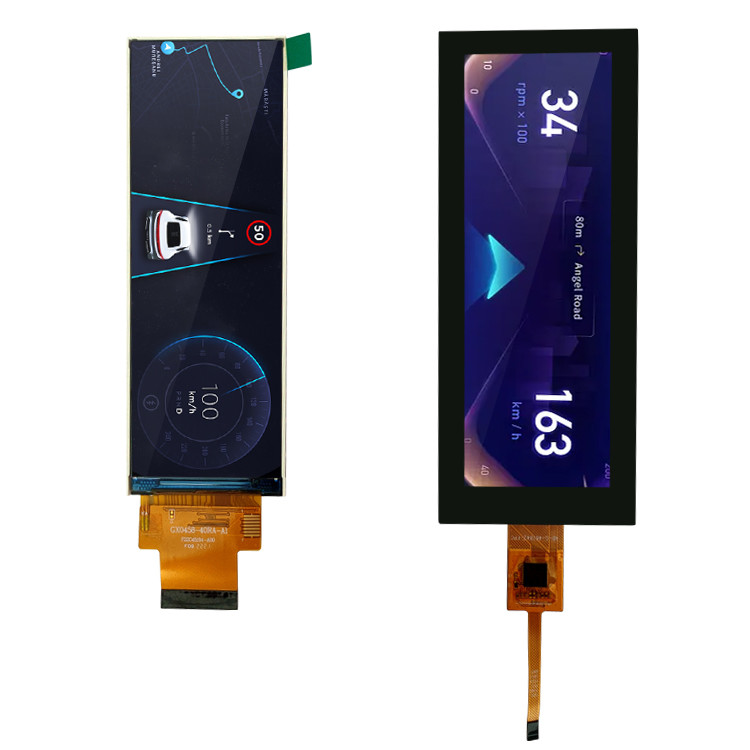

    Z046HD02 is a stretched bar-type 4.58 inch IPS TFT display, featuring a sharp resolution of 320x960 pixels. With an impressive contrast ratio of 1200:1, it excels in rendering deep blacks and vibrant colors, ensuring a visually striking experience. The IPS technology allows full viewing angle.

    Z046HD02 is built-in ST7701S controller,3-wire SPI and the 18-bit RGB parallel interface are used in a sequence to communicate data to the display. The SPI interface is first used to initialize the display parameters through command registers. Once initialized, the display can receive data over the RGB parallel interface at a higher speed.


    Z046HD02 comes with optional capacitive touch screen allowing users to interface with the display through touch and multi-touch input with bare fingers and with optional FPC connector.


    This 4.6 inch Bar Type TFT-LCD displays operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar TFT is perfect for electric vehicle dashboards and coffee machines, where a high-definition display is essential for clear navigation and monitoring.


    General Data

    Model Name4.6 inch Stretched Bar LCD Display
    Resolution320x960
    Model Size (W*H*T)mm41.57*118.8*2.5 mm
    Display Area (W*H)mm36.768 x 110.304 mm
    Interface3SPI+18 Bit RGB
    Display ModeNormally Black,Transmissive
    ViewingIPS
    Brightness300 cd/m2
    Pin number40 pin
    Contrast Ratio
    1200:1
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

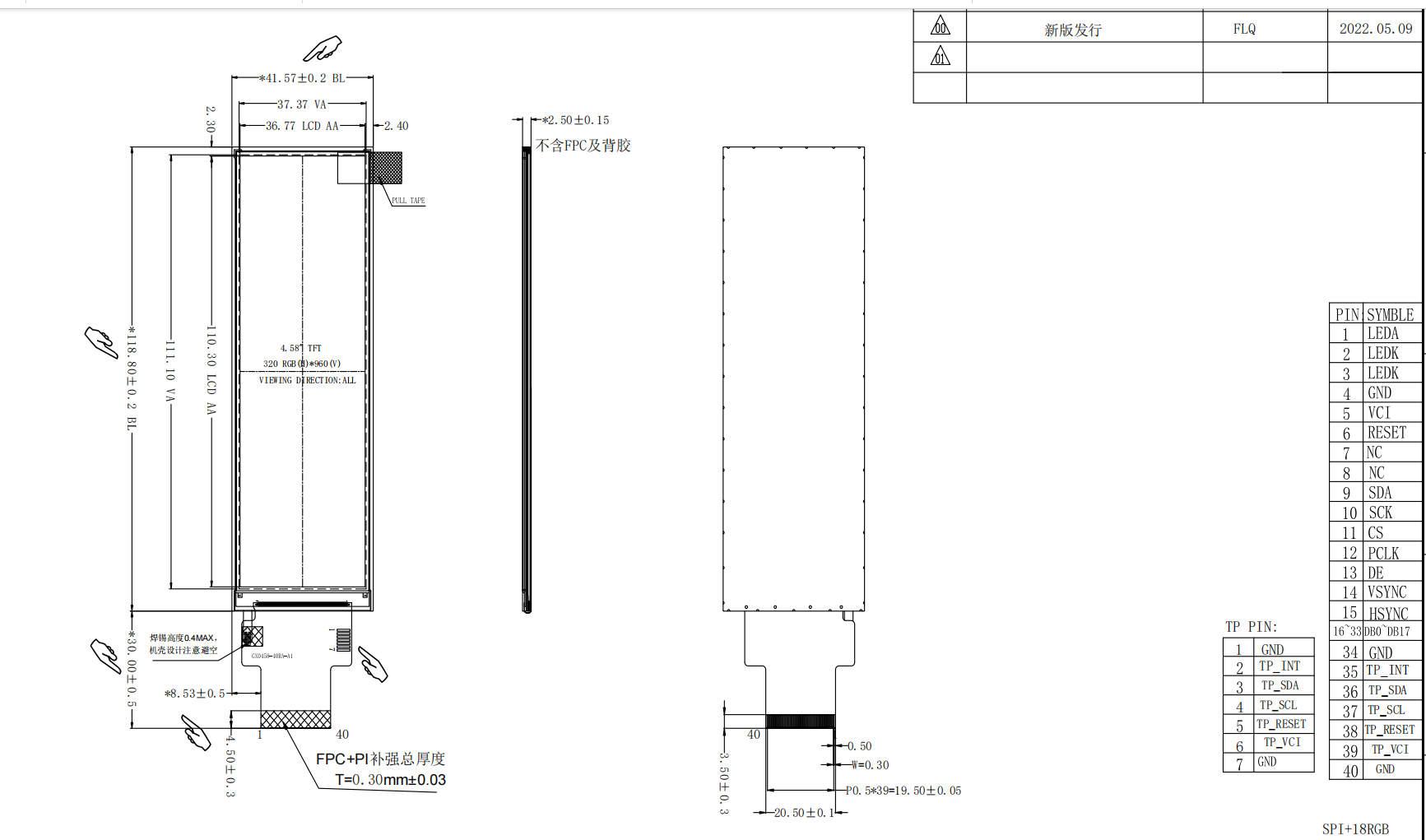

    Drawing



    Product Details

    4.58'' Stretched Display 320x960 4.6 inch Bar Type LCD Display RGB 40Pin4.58'' Stretched Display 320x960 4.6 inch Bar Type LCD Display RGB 40Pin4.58'' Stretched Display 320x960 4.6 inch Bar Type LCD Display RGB 40Pin


    TFT Applications:

    The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.

    4.58'' Stretched Display 320x960 4.6 inch Bar Type LCD Display RGB 40Pin
