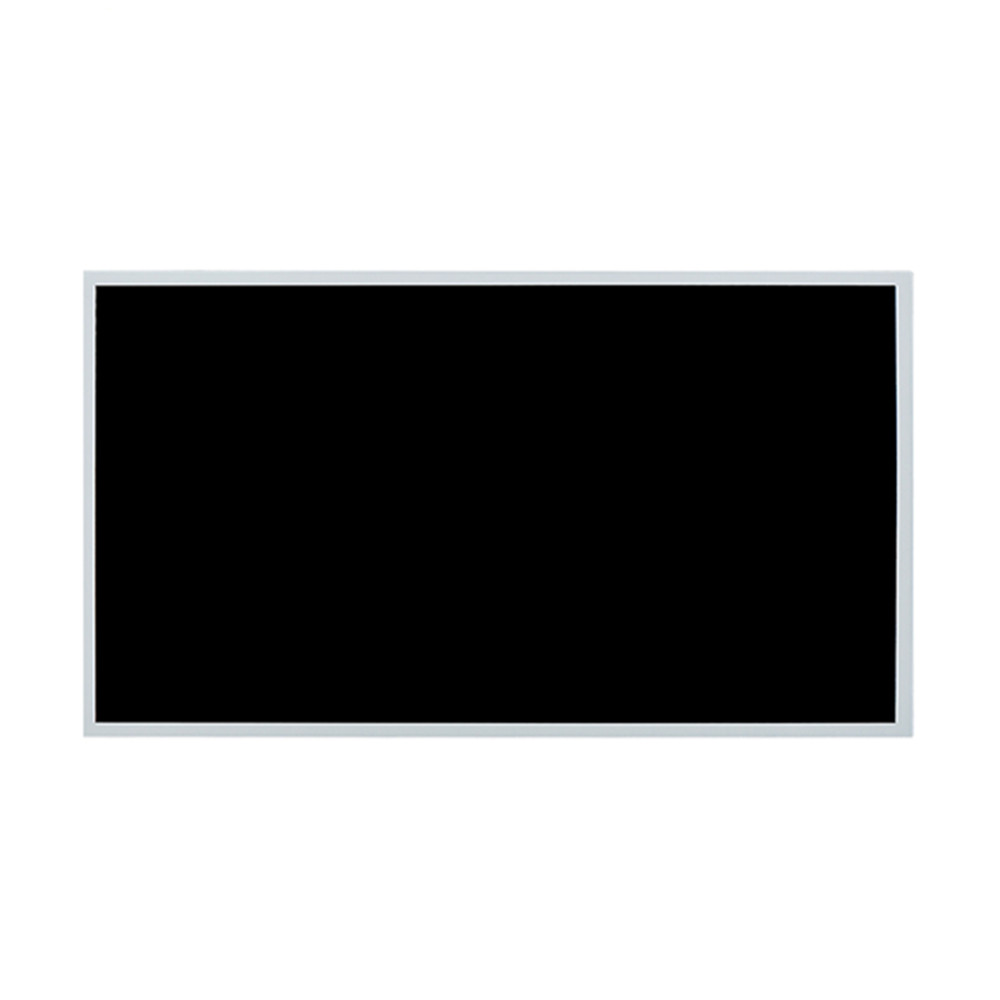

18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel

Aison Technology (HK) Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel from wholesalers

    Buy cheap 18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel from wholesalers
    • Buy cheap 18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel from wholesalers
    • Buy cheap 18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel from wholesalers
    • Buy cheap 18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel from wholesalers
    • Buy cheap 18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel from wholesalers

    18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel

    Ask Lasest Price
    Brand Name : AISON
    Model Number : GV185FHM-N10-DM30
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 300k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel

    18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel


    General Description

    1.1 Introduction


    1.0 GENERAL DESCRIPTION
    The GV185FHM-N10-DM30 is a 18.5 inch diagonal a-Si TFT-LCD display panel product from BOE,with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: WLED Backlight, With LED Driver, Upside I/F, Matte . Based on its features, it is recommend that this model be applied to Industrial etc.

    1.2 Features


    LED back-light

    LVDS interface

    RoHS Compliant

    16.7M color depth

    FHD1920X1080

    Wide Temperature


    General Data

    Model NameBOE 18.5 inch TFT Display
    Resolution1920(RGB)×1080, FHD
    Model Size (W*H*T)430.4(H)×254.6(V) ×12.5(D) mm
    Display Area (W*H)408.96(W)×230.04(H) mm
    InterfaceLVDS
    Display ModeNormally Black,Transmissive
    ViewingIPS
    Brightness350 cd/m2
    Pin number30 pin
    Contrast Ratio1000:1
    Operating temperatures-20 ~ 70 °C
    Storage temperatures-30 ~ 80 °C

    Drawing



    Product Details


    18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel


    TFT Applications:


    Industrial application,such as Video Phone/IP Phone/Smart Key/ e-cigarettes etc.
