    Tianma Original 1280x800 Industrial TFT LCD Display Module 10.1 Inch TM101JDHG40-00

    Ask Lasest Price
    Brand Name : AISON
    Model Number : TM101JDHG40-00
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 300k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

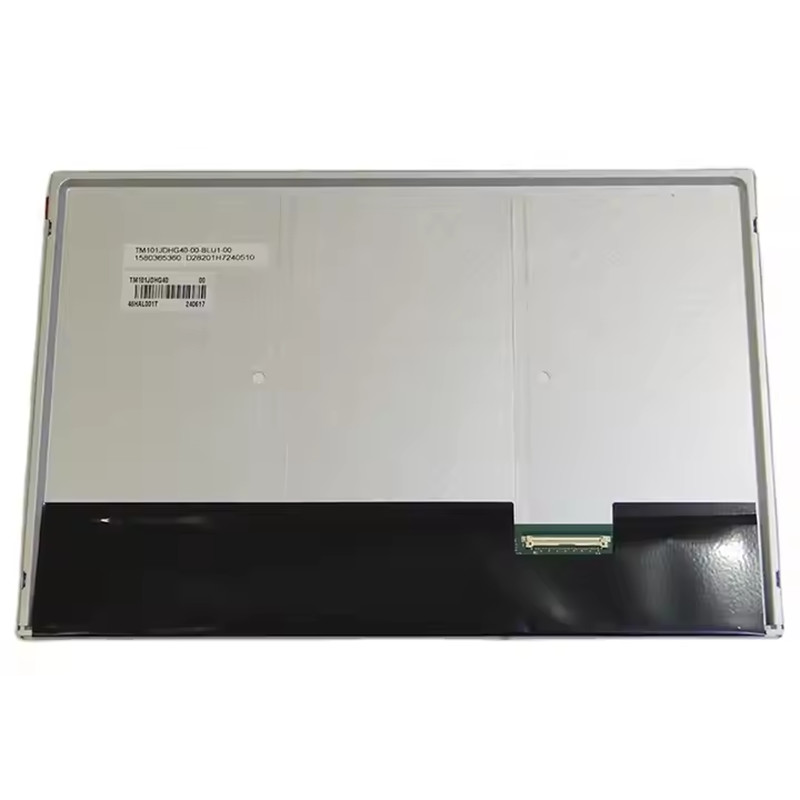

    Tianma Original 1280x800 Industrial TFT LCD Display Module 10.1 Inch TM101JDHG40-00

    Tianma Original 10.1 Inch TM101JDHG40-00 1280x800 Industrial TFT LCD Display Module


    General Description
    TM101JDHG40 is a 10.1" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. (hereafter called TIANMA), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized in the following: WLED Backlight, With LED Driver, Reverse I/F, 6/8 bit, Matte . Based on its features, it is recommend that this model be applied to Industrial, VOIP Phone, Healthcare etc.Built-in ST5821CA*3 + ST5084CA*1 driver IC.

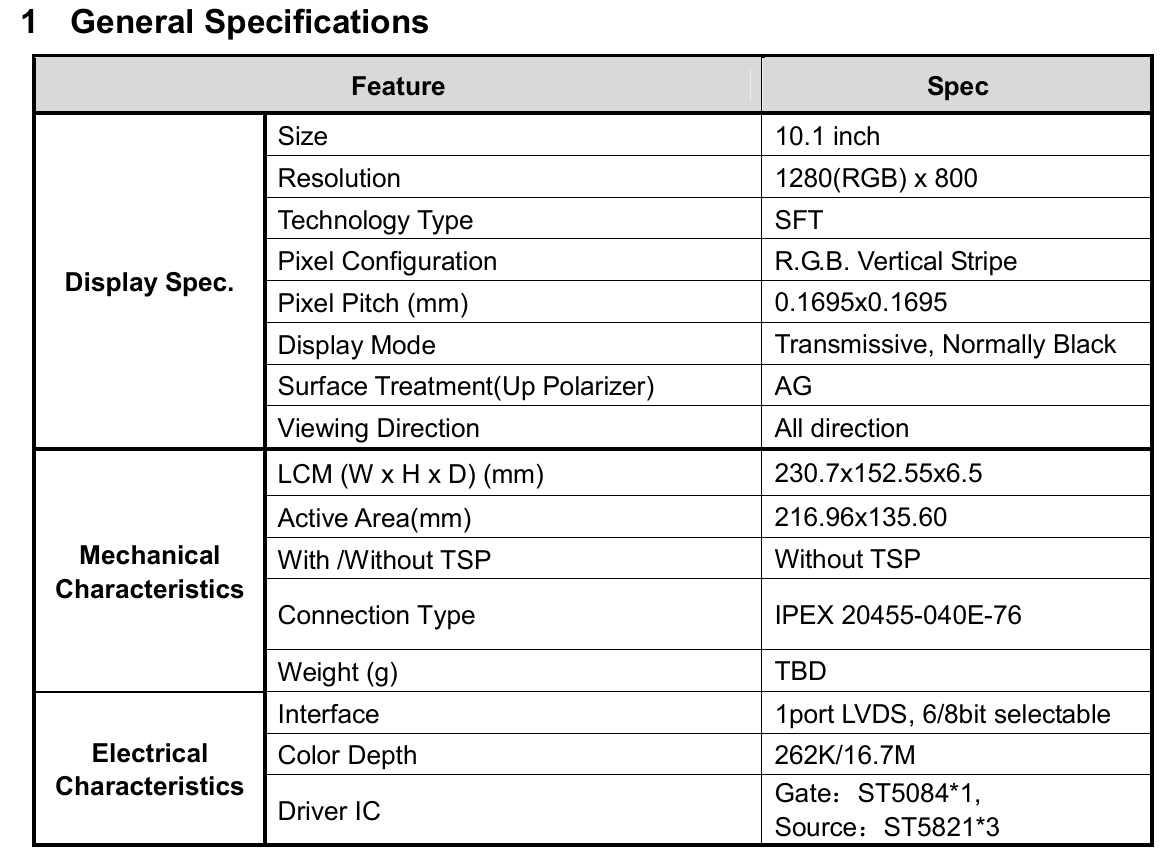

    General Data

    Model NameTianma 10.1 inch Display Module
    Resolution1280x800
    Model Size (W*H*T)230.7(W)×152.55(H)×6.8(D) mm
    Display Area (W*H)216.96(W)×135.6(H) mm
    InterfaceLVDS
    Display ModeNormally Black,Transmissive
    ViewingIPS
    Brightness400 cd/m2
    Pin number40 pin
    Contrast Ratio800:1
    Operating temperatures-20 ~ 70 °C
    Storage temperatures-30 ~ 80 °C

    Drawing



    Product Details

    Tianma Original 1280x800 Industrial TFT LCD Display Module 10.1 Inch TM101JDHG40-00


    TFT Applications:


    Tianma TM101JDHG40-00 10.1 inch Wide Industrial TFT Display Screen 1280x800 WXGA Color LCD Module,it is recommend that this model be applied to Industrial, VOIP Phone, Healthcare etc.
