10.1 inch 1024X600 IPS TFT LCD Display 50pin RGB Interface with Resistive Touch Panel

Display General Description

Introducing the Z101WS08-T, a landscape-oriented 10.1-inch IPS TFT LCD module with a resistive touch screen. This module features a resolution of 1024x600 pixels and is equipped with EK79001HN and EK73215BCGA driver ICs. It supports an LVDS interface, offering a typical contrast ratio of 800:1, brightness of 500 nits, and an aspect ratio of 16:9. The module includes an anti-glare surface glass, operates in normally black mode, and is a transmissive LCD type.

The Z101WS08-T boasts a wider viewing angle compared to TN TFT modules, with a typical viewing angle of 80 degrees (left, right, up, and down). The supply voltage (VDD) ranges from 3.0V to 3.6V, with a typical value of 3.3V. Designed for durability, this 10.1-inch TFT module operates within a temperature range of -20℃ to +70℃ and can be stored in temperatures from -30℃ to +80℃, making it suitable for diverse environmental conditions.

General Data

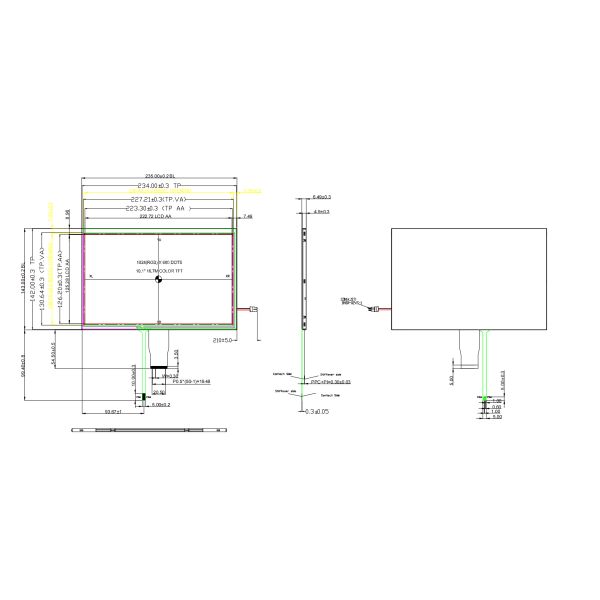

Drawing



Product Details

TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
