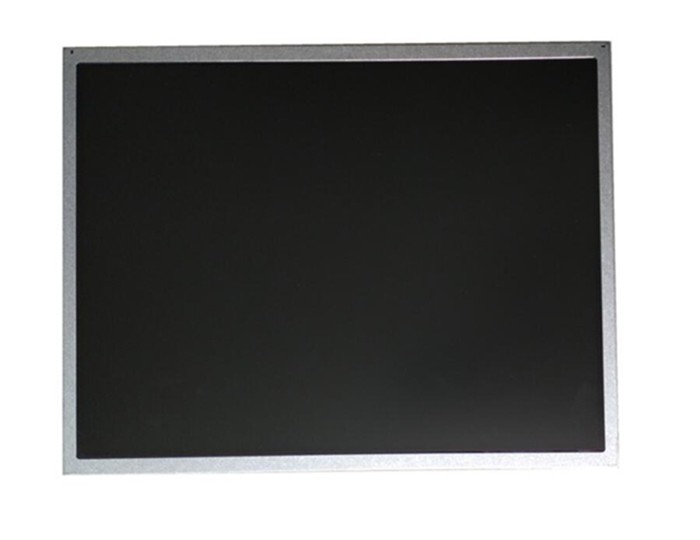

5.6 Inch 640x480 Industrial-Grade TFT Display 18bit RGB Direct Replacement For Innolux AT056TN53 V.1

Display General Description

The P056I640480TE-W02 is a direct replacement for Innolux AT056TN53 V.1 TFT LCD 5.6 inch module manufactured by INNOLUX, it boasts an impressive resolution of 640×480, providing sharp and vibrant visuals. With a panel size of 5.6 inches and a pixel configuration of RGB vertical stripe, this display offers a pixel density of 143 PPI, ensuring crisp images and text.

The aspect ratio of 4:3 (H:V) and a flat rectangle form factor make it suitable for a wide range of applications.

Measuring 126.5×100 mm, with an active area of 112.896×84.672 mm,the TFT display module integrates ILI6192A-01 and ILI5481A driver ICs, supporting a 18-bit RGB Interface. Its 5.6-inch TFT LCD panel boasts a brightness of 350 cd/m2 and a contrast ratio (typical value) of 1000:1. Thanks to its anti-glare display surface, reflections are minimized, ensuring superior image quality.

Operating within a temperature range of -20 to +70℃, and with a storage temperature spanning from -30 to +80℃, this module is built to withstand diverse environmental conditions.

General Data

Drawing

Product Details

TFT Applications

This 5.6 inch 640x480 lcd module displays features a 18-bit RGB interface that ensures stable and efficient data transmission. That is suitable for a wide range of applications, including industrial control systems, home automation and portable electronics.

AT056TN53 V.1 Applications:

• Video and Audio Systems

The high resolution and vibrant colors of the Innolux AT056TN53 V.1 5.6 inch TFT LCD 640×480 make it an ideal choice for video and audio systems, providing an immersive viewing experience.

• Medical Equipment

The TFT LCD module’s reliability and stability make it suitable for medical equipment such as diagnostic devices, patient monitoring systems, and medical imaging displays.

• Industrial Equipment

With its robust design and ability to withstand harsh industrial conditions, the AT056TN53 V.1 is widely used in industrial equipment, including control panels, automation systems, and data visualization displays.

• Testing Devices

The accurate color reproduction and precise image rendering of the AT056TN53 V.1 TFT LCD module make it an excellent choice for testing devices, ensuring accurate data visualization and analysis.
