2.4 inch 240x320 IPS TFT LCD Module High Brightness 1000cd/m2 with SPI/ MCU/RGB Interface

Aison Technology (HK) Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 2.4 inch 240x320 IPS TFT LCD Module High Brightness 1000cd/m2 with SPI/ MCU/RGB Interface from wholesalers

    Buy cheap 2.4 inch 240x320 IPS TFT LCD Module High Brightness 1000cd/m2 with SPI/ MCU/RGB Interface from wholesalers
    • Buy cheap 2.4 inch 240x320 IPS TFT LCD Module High Brightness 1000cd/m2 with SPI/ MCU/RGB Interface from wholesalers
    • Buy cheap 2.4 inch 240x320 IPS TFT LCD Module High Brightness 1000cd/m2 with SPI/ MCU/RGB Interface from wholesalers
    • Buy cheap 2.4 inch 240x320 IPS TFT LCD Module High Brightness 1000cd/m2 with SPI/ MCU/RGB Interface from wholesalers

    2.4 inch 240x320 IPS TFT LCD Module High Brightness 1000cd/m2 with SPI/ MCU/RGB Interface

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z024Q20
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    2.4 inch 240x320 IPS TFT LCD Module High Brightness 1000cd/m2 with SPI/ MCU/RGB Interface

    2.4 inch 240x320 IPS TFT LCD Module High Brightness 1000cd/m2 with SPI/ MCU/RGB Interface


    Display General Description

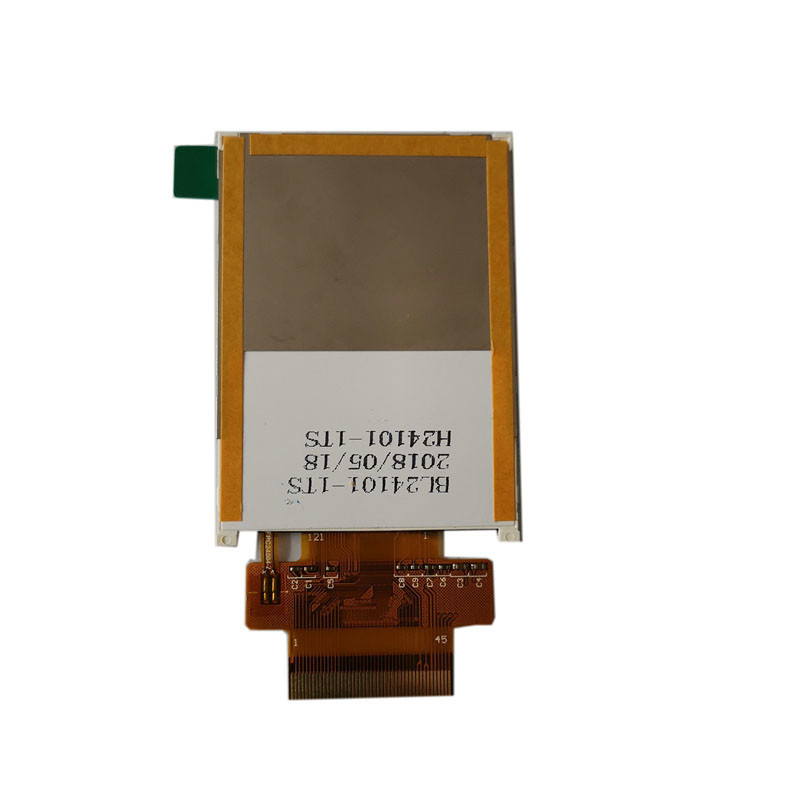

    The Z024Q20J is a high-performance 2.4-inch IPS TFT-LCD display module designed for optimal visual clarity and versatility. With a resolution of 240 x 320 pixels, this module delivers sharp and vibrant imagery. Equipped with the ST7789V controller IC, it supports multiple interfaces, including MCU8080, SPI, and RGB, offering flexibility for integration into various systems.


    Featuring an IPS panel, the Z024Q20J provides a wide viewing angle of 80 degrees (typical) in all directions, ensuring clear visibility from multiple perspectives. Its contrast ratio of 500 (typical) enhances image quality, while its brightness of 1000 cd/m² (typical) ensures excellent visibility even in bright environments.


    This TFT-LCD display operates in portrait mode and is built to withstand demanding conditions. The analog supply voltage (VCI) ranges from 2.5V to 3.3V, and the module can operate within a temperature range of -20°C to +70°C, with storage temperatures ranging from -30°C to +80°C. This makes it suitable for a wide range of applications and environments.

    The Z024Q20J is an ideal choice for developers and manufacturers seeking a reliable, high-quality display solution for their embedded systems and applications.


    General Data

    Model Name2.4 inch IPS TFT Display
    Resolution240x320
    Model Size (W*H*T)42.72*59.46*2.3 mm
    Display Area (W*H)36.72*48.96mm
    InterfaceSPI/MCU/RGB
    Display ModeNormally Black,Transmissive
    Viewing Angles80/80/80/80
    Brightness1000 cd/m2
    Pin number45
    Drive ICST7789V
    BACKLIGHT TYPE4 WHITE LED
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

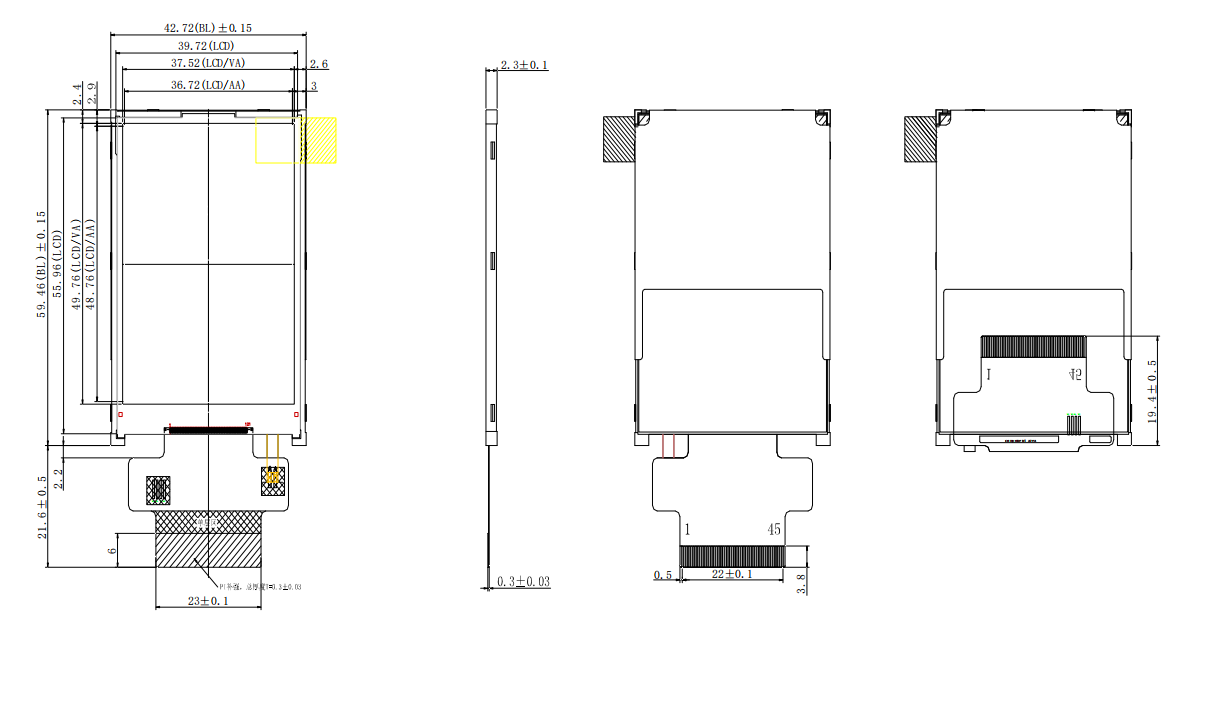

    Drawing


    Product Details

    2.4 inch 240x320 IPS TFT LCD Module High Brightness 1000cd/m2 with SPI/ MCU/RGB Interface2.4 inch 240x320 IPS TFT LCD Module High Brightness 1000cd/m2 with SPI/ MCU/RGB Interface


    TFT Applications

    This versatile display is suitable for various applications, including air quality testing, blood glucose measurement, MP3 players, home appliances, as well as specialized applications such as speedometers, safety monitoring systems, handheld devices, and dash cameras in compact industrial equipment.
