    8 Inch 800x480 TFT LCD Display High Brightness 1000cd/m2 For Industrial Application RGB Interfacde

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z080TN64J
    Certification : ISO9001 / ISO14000/ROHS
    Price : 11~20usd/pc
    Payment Terms : T/T
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    8 Inch 800x480 TFT LCD Display High Brightness 1000cd/m2 For Industrial Application RGB Interfacde

    8 inch 800x480 TFT LCD Display High Brightness 1000cd/m2 for Industrial Application RGB Interfacde


    Display General Description


    The Z080TN64 is a premium 8-inch TFT LCD display module designed for exceptional visual performance. With a resolution of 800x480 pixels and a 16:9 aspect ratio, it delivers sharp and vibrant images. The display features a high brightness of 1000 nits (typical) and a contrast ratio of 500:1, ensuring clear visibility in various environments.


    Measuring 192.80 x 116.90 mm in outline dimensions, the module offers an active display area of 176.64 x 99.36 mm, providing ample space for content. Equipped with EK9713 and EK73002 driver ICs, it supports a 24-bit RGB interface for seamless integration.


    Operable within a wide temperature range of -20°C to +70°C and a supply voltage of 3.0V to 3.6V (typical 3.3V), the Z080TN64 is built for reliability and durability. Its robust design makes it an ideal solution for industrial control systems, medical devices, and other demanding applications.


    General Data

    Model Name8 inch TFT LCD Display
    Resolution800X480
    Model Size (W*H*T)mm192.8*116.9*6.4mm
    Display Area (W*H)mm
    176.64 x 99.36mm
    Interface24 bit RGB
    Display ModeNormally White TN,Transmissive
    Viewing12:00 o'clock
    Brightness1000 cd/m2
    Pin number50
    Drive ICEK9713 + EK73002
    BACKLIGHT TYPE27 WHITE LED
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

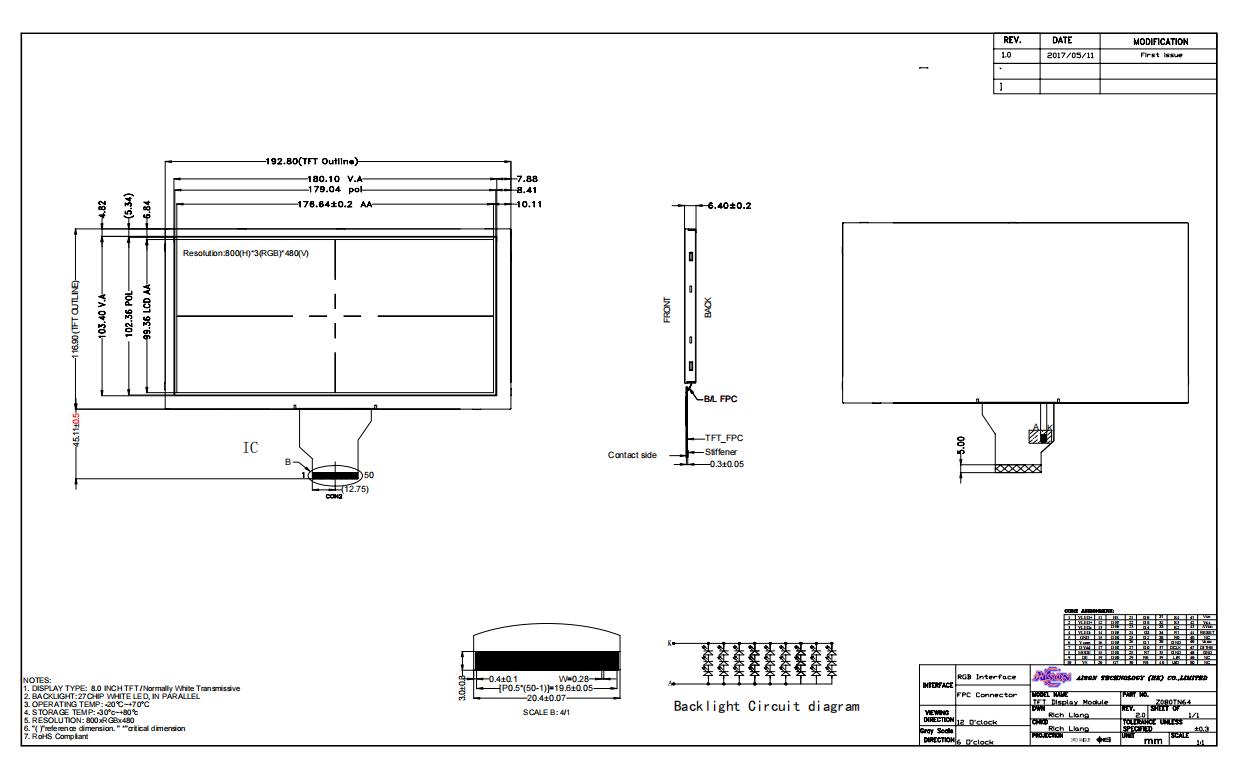

    Drawing


    Product Details

    8 Inch 800x480 TFT LCD Display High Brightness 1000cd/m2 For Industrial Application RGB Interfacde8 Inch 800x480 TFT LCD Display High Brightness 1000cd/m2 For Industrial Application RGB Interfacde


    TFT Applications

    This TFT LCD module is versatile and suitable for a wide range of applications:
    Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
