    2.4 inch 240X320 TFT LCD Display SPI Interface for Industrial

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z024Q01
    Certification : ISO9001 / ISO14000/ROHS
    Price : 3~10usd/pc
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 200k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    2.4 inch 240X320 TFT LCD Display SPI Interface for Industrial

    2.4 inch 240X320 TFT LCD Display SPI Interface for Industrial


    Display General Description

    The Z024Q01 presents a comprehensive 2.4-inch TFT LCD display, boasting a diagonal resolution of 240x320 in full color. This top-notch display integrates the ST7789V or ILI9341V IC and supports the SPI Interface. With module dimensions measuring 42.72*59.46*2.3 mm and an active area of 36.72 x 48.96 mm, this model incorporates the ST7789V or ILI9341V controller on the module, with a logic supply voltage range spanning from 2.4V to 3.3V.


    Designed primarily for portrait mode, our 2.4" TFT LCD module can be easily adapted for landscape mode with the appropriate technical guidance available upon request. Notably, this 2.4" TFT Display offers an brightness of 180cd/m2 (typical value) and operates seamlessly within temperatures ranging from -20℃ to +70℃, while maintaining a storage capacity of -30℃ to +80℃. Perfectly suited for a wide range of applications, including smart home integration, medical devices, portables, wearables, energy control systems, telecommunications, and data transfers.



    General Data

    Model Name2.4 inch LCD Module
    Resolution240x320
    Model Size (W*H*T)42.72*59.46*2.3 mm
    Display Area (W*H)36.72*48.96mm
    InterfaceSPI/MCU/RGB
    Display ModeNormally White,Transmissive
    Viewing Angles65/55/65/65
    Brightness180 cd/m2
    Pin number14
    Drive ICST7789V
    BACKLIGHT TYPE4 WHITE LED
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree

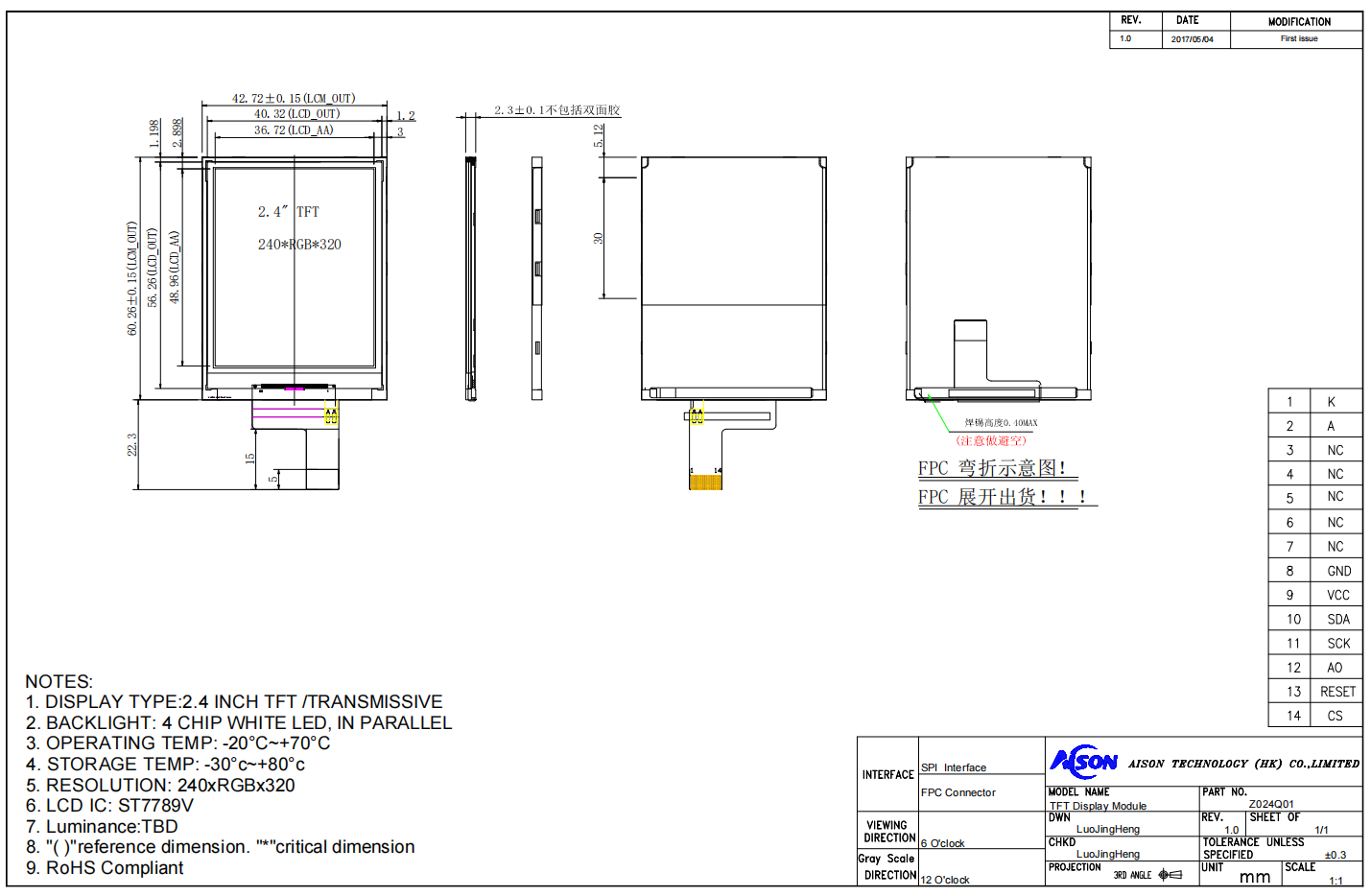

    Drawing


    Product Details

    2.4 inch 240X320 TFT LCD Display SPI Interface for Industrial


    TFT Applications

    This versatile display is suitable for various applications, including air quality testing, blood glucose measurement, MP3 players, home appliances, as well as specialized applications such as speedometers, safety monitoring systems, handheld devices, and dash cameras in compact industrial equipment.
