    5 Inch Round TFT Display 1080x1080 Circle Display With Captouch Screen

    Ask Lasest Price
    Brand Name : AISON
    Model Number : Z050YMM-J40-68P0C
    Certification : ISO9001 / ISO14000/ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 100k/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

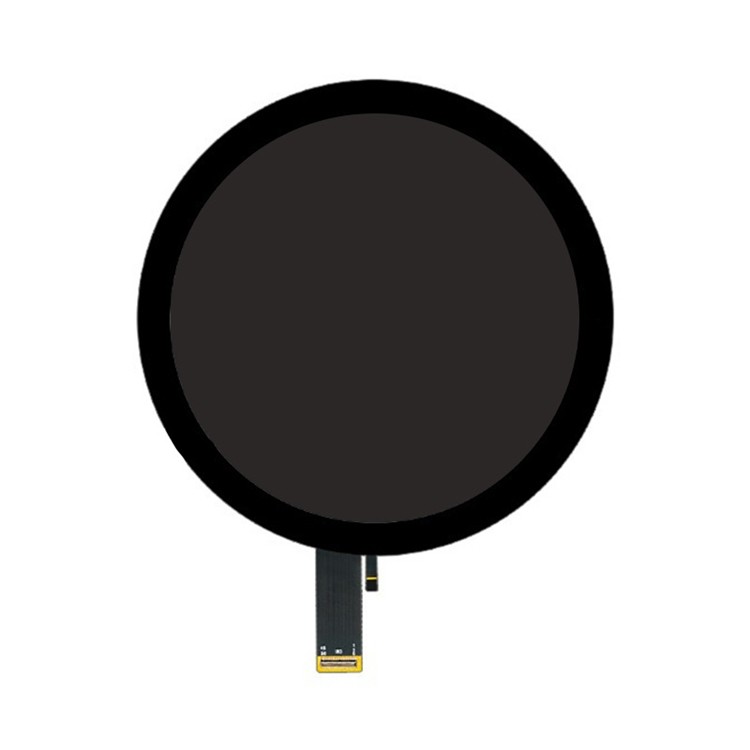

    5 Inch Round TFT Display 1080x1080 Circle Display With Captouch Screen

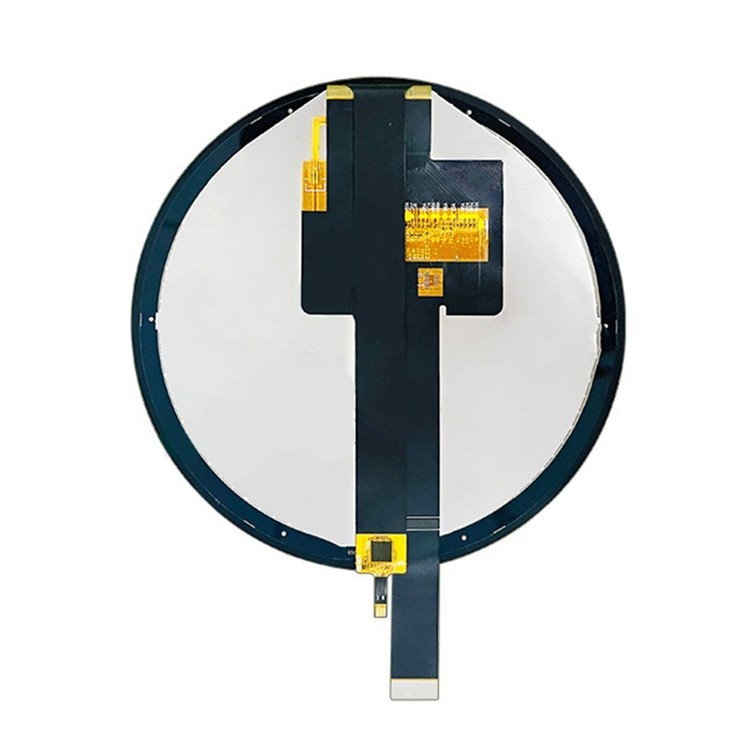

    5 Inch Round TFT Display 1080x1080 Circle Display With Captouch Screen


    General Description

    The Z050YMM-J40-68P0C is a high-performance 5.0-inch circular IPS TFT LCD module developed by BOE. It features a high resolution of 1080x1080 RGB pixels on a black background, delivering an exceptional visual experience. With a brightness of 300cd/m², this module ensures clear visibility in various lighting conditions, providing optimal viewing comfort.

    The 5 inch circle lcd module is powered by the reliable HX8399C driver IC and supports the MIPI 4 Lane interface, ensuring consistent and dependable performance. Designed for compatibility with a wide range of microcontrollers (MCUs), including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi, this lcd module is ideal for diverse applications such as embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices.

    The circular lcd module is equipped with a Flexible Printed Circuit (FPC) featuring a Board-to-Board (B2B) connector, enabling seamless and direct connection to the B2B connector on your PCB. This design simplifies integration and ensures a secure and reliable connection.

    General Data
    Product Name5 inch Circular TFT Display with PCAP
    Number of Pixel1080x1080
    InterfaceMIPI 50Pin
    Luminance(cd/m2)300 cd/m2
    Active area127.01 (H) *127.01 (V)mm
    LCM (W x H x D)148.1*148.1*3.205mm
    LCD Driver ICHX8399C
    CTP Driver ICGT911
    Viewing Direction80/80/80/80
    Contrast Ratio1300:1
    Operating temperatures-20 to 70 degree
    Storage temperatures-30 to 80 degree
    Drawing
    5 Inch Round TFT Display 1080x1080 Circle Display With Captouch Screen
    Product Details
    5 Inch Round TFT Display 1080x1080 Circle Display With Captouch Screen5 Inch Round TFT Display 1080x1080 Circle Display With Captouch Screen
    5 Inch Round TFT Display 1080x1080 Circle Display With Captouch Screen5 Inch Round TFT Display 1080x1080 Circle Display With Captouch Screen5 Inch Round TFT Display 1080x1080 Circle Display With Captouch Screen
    Application:
    Circular display, instrument, smart home, advertising machine
